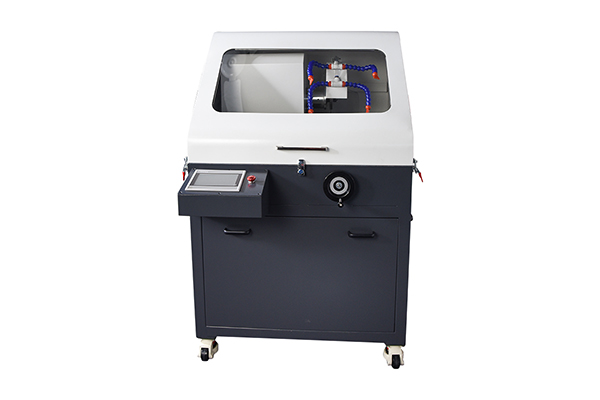

Intelligent Automatic Metallographic Precision Cutting Machine
GTQ-5000ZL
Send Email Details
This series is a floor-standing integrated precision intelligent automatic metallographic cutting machine designed to meet the requirements of precise positioning cutting and multiple positioning cutting. It adopts an ultra-large color touch screen and a PLC control system. The unique split double-layer movable precision positioning platform meets the precision requirements of flattening thin slices of various irregular parts. The feed stroke can be set arbitrarily, the cutting speed is infinitely adjustable from 1 to 100 mm/min, and can be adjusted online at any time according to the cutting situation, it is suitable for precision cutting and sampling of samples of various materials. -
Fully Automatic Diamond Wire Cutting Machine
JX-203
Send Email Details
The JX-203 fully automatic diamond wire cutting machine is designed for material researchers. It is used for precision cutting of brittle material samples. It can slice and cut materials. The rotating turntable can also cut samples at a certain angle. Materials that can be cut include crystals, ceramics, glass, honeycomb ceramics (thin-walled and fragile carriers for automobile exhaust treatment), metals, plastics, PCBs, rock samples, mineral samples, refractory materials, building materials, dental materials, biomaterials, organic polymer materials and biomimetic composite materials. When it is used for ultra-thin precision cutting, the thickness of the slice can reach 0.08mm. JX-203 is a continuous cutting diamond wire cutting machine. After setting the cutting program, the sample is fed continuously without manual adjustment. The size accuracy of the cut sample is high, within the range of ±10μm. The cutting wire of this fully automatic diamond wire cutting machine adopts a single wire reciprocating motion mode. The length of the usable wire is long, the service life of the wire is long, and the cutting efficiency is improved. -
Metallographic Precision Flat Plate Cutting Machine
PBQ-5000Z
Send Email Details
PBQ-5000 metallographic precision flat plate cutting machine is suitable for cutting samples such as semiconductors, crystals, circuit boards, fasteners, metal materials, rocks and ceramics. The whole machine is smooth, spacious and generous, providing a good working platform. It adopts high-torque and high-power servo motors and stepless speed control systems, which are efficient and stable. Good visibility and cutting ability minimize the difficulty of operation and are easy to use. Moreover, the machine is equipped with a variety of different fixtures, which can cut irregular-shaped workpieces. It is a high-quality precision cutting machine suitable for scientific research institutions and enterprises. -
Metallographic Sample Cutting Machine
Q-2A
Send Email Details
Q-2A metallographic sample cutting machine uses a high-speed rotating thin-slice grinding wheel to cut metallographic samples. It is widely used in metallographic laboratories to cut various metal materials. Since this machine is equipped with a cooling device to take away the heat generated during cutting, it avoids the sample from being heated and changing its metallographic structure. -
Cutting Machine
Q-100B
Send Email Details
Q-100B metallographic sample cutting machine uses a high-speed rotating thin-slice grinding wheel to cut metallographic samples. It is widely used in metallographic laboratories to cut various metal materials. Since this machine is equipped with a cooling device to take away the heat generated during cutting, it avoids the sample from being heated and changing its metallographic structure. -
Precision Flatbed Cutting Machine
SYJ-200H
Send Email Details
SYJ-200H precision flatbed cutting machine is suitable for rough processing of various materials such as crystals, ceramics, glass, rocks and metallographic specimens. Diamond saw blades, electroplated diamond saw blades and resin saw blades can be used.
Installation conditions: This equipment is required to be used below 1000m above sea level, at a temperature of 25℃±15℃ and a humidity of 55%Rh±10%Rh.
1. Water: The equipment is equipped with a self-circulating water tank (filled with pure water or deionized water).
Note: Cooling water must be added during normal use of the equipment, otherwise the spindle will overheat and affect the service life of the sealing ring. The water tank should not be filled with too much water, and it is advisable not to exceed 5mm above the edge of the saw blade.
2. Electricity: AC 220V 50Hz, must be well grounded.
3. Gas: None
4. Workbench: size 500mm×400mm, load-bearing capacity of more than 100kg.
5. Ventilation device: required
