Cutting Machine

Q-100B

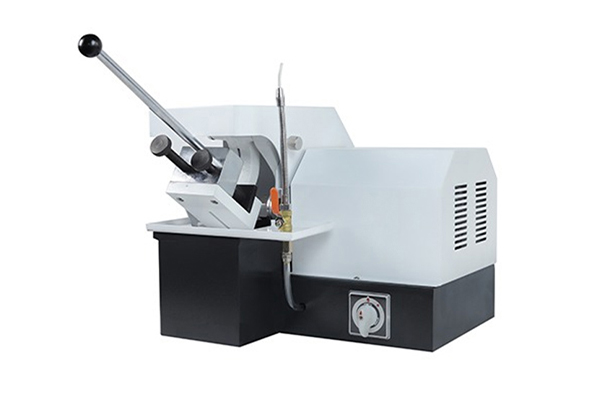

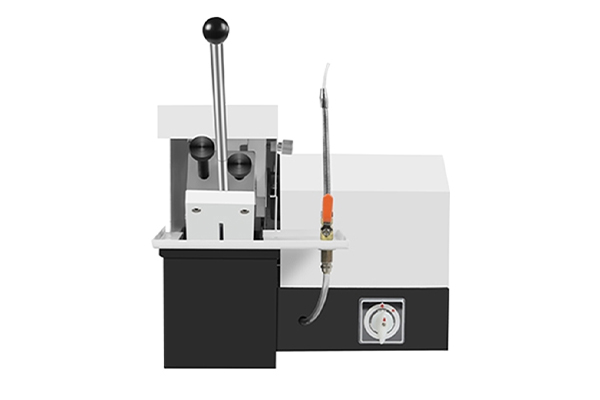

Q-100B metallographic sample cutting machine uses a high-speed rotating thin-slice grinding wheel to cut metallographic samples. It is widely used in metallographic laboratories to cut various metal materials. Since this machine is equipped with a cooling device to take away the heat generated during cutting, it avoids the sample from being heated and changing its metallographic structure.
After-sales service: free warranty for one year, lifelong maintenance.
For matching cutting consumables, please click the link for details:
Diamond saw blade link, metallographic grinding wheel link, cooling cutting lubricant link

Maximum cutting diameter:

Φ55mm

Speed

2860 rpm

Grinding wheel specifications:

300×2×32mm

Power supply:

380V、50HZ

Electric Motor:

2.2KW

Dimensions:

650×500×400mm

Machine Net Weight

80 kg

×
