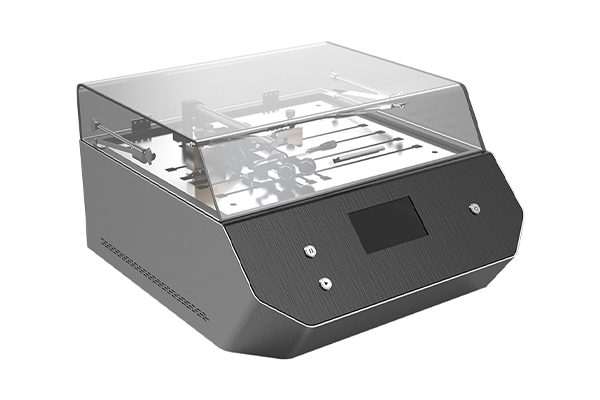

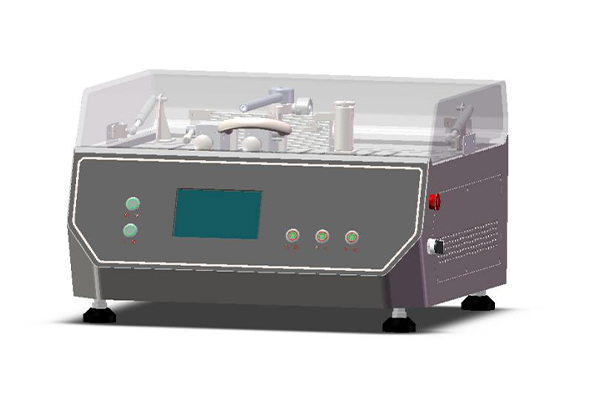

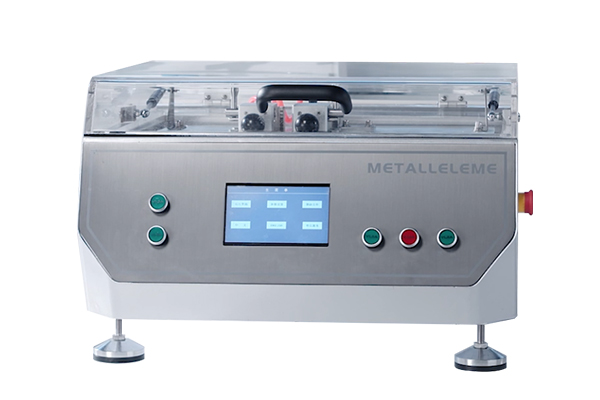

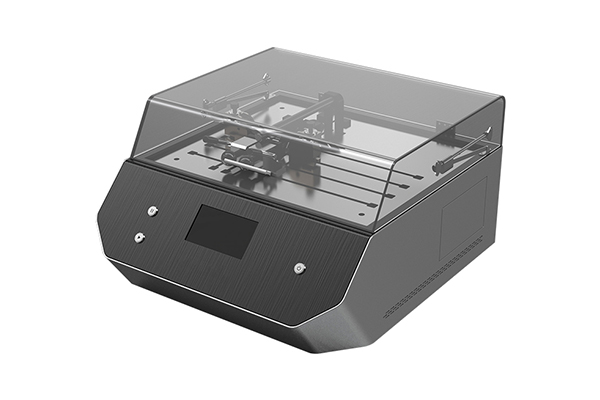

Metallographic Precision Flat Plate Cutting Machine

Metallographic Precision Flat Plate Cutting Machine

PBQ-5000Z
PBQ-5000 metallographic precision flat plate cutting machine is suitable for cutting samples such as semiconductors, crystals, circuit boards, fasteners, metal materials, rocks and ceramics. The whole machine is smooth, spacious and generous, providing a good working platform. It adopts high-torque and high-power servo motors and stepless speed control systems, which are efficient and stable. Good visibility and cutting ability minimize the difficulty of operation and are easy to use. Moreover, the machine is equipped with a variety of different fixtures, which can cut irregular-shaped workpieces. It is a high-quality precision cutting machine suitable for scientific research institutions and enterprises.

Consult

Features
Technical Indicators
Overall Dimension

The PBQ-5000 metallographic precision flat plate cutting machine is a flat plate cutting machine developed for flat plate samples. The equipment has a large transparent protective cutting chamber, which allows intuitive observation of the cutting process. The electronic touch screen can adjust and control the high-precision spindle, speed, spindle cutting movement speed and cutting distance. It is easier to use and operate. It has an automatic cutting function, which reduces the operator's work fatigue and ensures the consistency of the sample cutting machine. It is an ideal equipment for enterprises and scientific research institutes to prepare high-quality samples.
Product Name: PBQ-5000Z Metallographic Precision Flat Plate Cutting Machine Y travel: 200mm Cutting method: Straight line Diamond cutting blade (mm): Φ200×0.9×32mm Spindle speed（rpm）： 500-5000, adjustable speed Impact cutting distance: 0.1-2mm/s Automatic cutting speed: 0.01-3mm/s Manual speed: 0.01-15mm/s (button type) Maximum cutting thickness: 45mm Maximum clamping length of workbench: 585mm Maximum clamping width of workbench: 200mm Show: 7-inch touch screen PLC control Usage data: 10 types available Workbench size (W×D, mm): 505×590 Power: 1100W Power supply: Single phase 220V Machine Dimensions: 690×722×420

Product Name:	PBQ-5000Z Metallographic Precision Flat Plate Cutting Machine
Y travel:	200mm
Cutting method:	Straight line
Diamond cutting blade (mm):	Φ200×0.9×32mm
Spindle speed（rpm）：	500-5000, adjustable speed
Impact cutting distance:	0.1-2mm/s
Automatic cutting speed:	0.01-3mm/s
Manual speed:	0.01-15mm/s (button type)
Maximum cutting thickness:	45mm
Maximum clamping length of workbench:	585mm
Maximum clamping width of workbench:	200mm
Show:	7-inch touch screen PLC control
Usage data:	10 types available
Workbench size (W×D, mm):	505×590
Power:	1100W
Power supply:	Single phase 220V
Machine Dimensions:	690×722×420
