Fully Automatic Diamond Wire Cutting Machine

Fully Automatic Diamond Wire Cutting Machine

JX-203

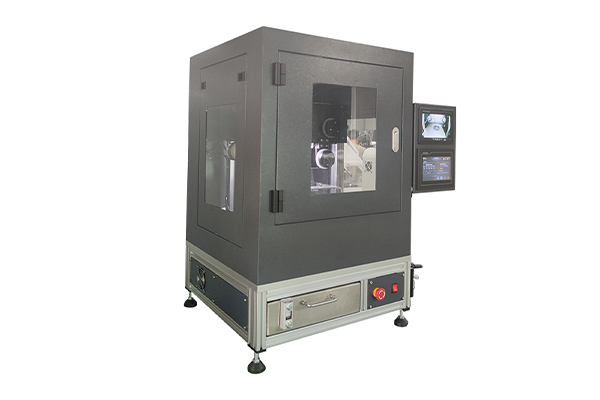

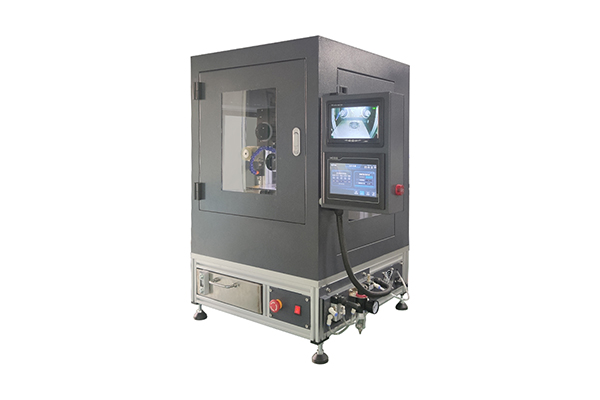

The JX-203 fully automatic diamond wire cutting machine is designed for material researchers. It is used for precision cutting of brittle material samples. It can slice and cut materials. The rotating turntable can also cut samples at a certain angle. Materials that can be cut include crystals, ceramics, glass, honeycomb ceramics (thin-walled and fragile carriers for automobile exhaust treatment), metals, plastics, PCBs, rock samples, mineral samples, refractory materials, building materials, dental materials, biomaterials, organic polymer materials and biomimetic composite materials. When it is used for ultra-thin precision cutting, the thickness of the slice can reach 0.08mm. JX-203 is a continuous cutting diamond wire cutting machine. After setting the cutting program, the sample is fed continuously without manual adjustment. The size accuracy of the cut sample is high, within the range of ±10μm. The cutting wire of this fully automatic diamond wire cutting machine adopts a single wire reciprocating motion mode. The length of the usable wire is long, the service life of the wire is long, and the cutting efficiency is improved.

Consult

Features
Technical Indicators
Overall Dimension


Product Name
Fully automatic diamond wire cutting machine
Product Model
JX-203
Maximum line speed
2m/s
Total length of cutting line
45m
Tension structure
Pneumatic tensioning
Pneumatic tensioning structure
Air pressure adjustment range
0.1-0.4Mpa
Z-axis travel
≤63mm
Maximum cutting size
53mm
Cutting wire diameter
＜0.45mm
Z-axis feed mode
Automatic feeding
Y-axis feed display
Automatic feeding
Adjustment range of electric angle table
±10°
Repeat positioning accuracy of electric angle table
±8″
Electric turntable adjustment range
0-360°
Electric turntable repeat positioning accuracy
＜0.02°
Maximum sample weight
4kg
Y-axis travel
≤50mm
Y-axis feed indication accuracy
0.01mm
Waterproof structure
Fully enclosed
Structural form
Profile sheet metal structure
Dimensions (L x W x H)
720*860*970mm
Weight
50kg

Standard accessories
1
Polyethylene (PE) tension pulley
2 piece

2
Polyethylene (PE) guide wheel
2 piece

3
Cross clamp
1 set

4
Diamond Wire
3 volumes

5
Water Pump
1 piece

6
Resin ceramic block
2 pieces

7
Paraffin wax stick
4 roots

Optional accessories
Diamond wire (Ø0.35mm, Ø0.42mm)

Special cutting oil

Geological thin section cutting fixture
MTI Series Heating Platform

Silent Oil-free Air Compressor

Product Name	Fully automatic diamond wire cutting machine
Product Model	JX-203
Maximum line speed	2m/s
Total length of cutting line	45m
Tension structure	Pneumatic tensioning
Pneumatic tensioning structure Air pressure adjustment range	0.1-0.4Mpa
Z-axis travel	≤63mm
Maximum cutting size	53mm
Cutting wire diameter	＜0.45mm
Z-axis feed mode	Automatic feeding
Y-axis feed display	Automatic feeding
Adjustment range of electric angle table	±10°
Repeat positioning accuracy of electric angle table	±8″
Electric turntable adjustment range	0-360°
Electric turntable repeat positioning accuracy	＜0.02°
Maximum sample weight	4kg
Y-axis travel	≤50mm
Y-axis feed indication accuracy	0.01mm
Waterproof structure	Fully enclosed
Structural form	Profile sheet metal structure
Dimensions (L x W x H)	720860970mm
Weight	50kg

Standard accessories	1	Polyethylene (PE) tension pulley	2 piece
	2	Polyethylene (PE) guide wheel	2 piece
	3	Cross clamp	1 set
	4	Diamond Wire	3 volumes
	5	Water Pump	1 piece
	6	Resin ceramic block	2 pieces
	7	Paraffin wax stick	4 roots

Optional accessories	Diamond wire (Ø0.35mm, Ø0.42mm)
	Special cutting oil
	Geological thin section cutting fixture
	MTI Series Heating Platform
	Silent Oil-free Air Compressor
