Model | GTQ-5000ZL |
Spindle speed | 300-3000r/min |
Platform X Mobile ★ | 60mm |
Platform Y travel ★ | Automatic (280mm) |
Platform Y speed ★ | 0-200mm (stepless speed regulation) |
Cutting Z axis travel ★ | 0-60mm (stepless speed regulation) |

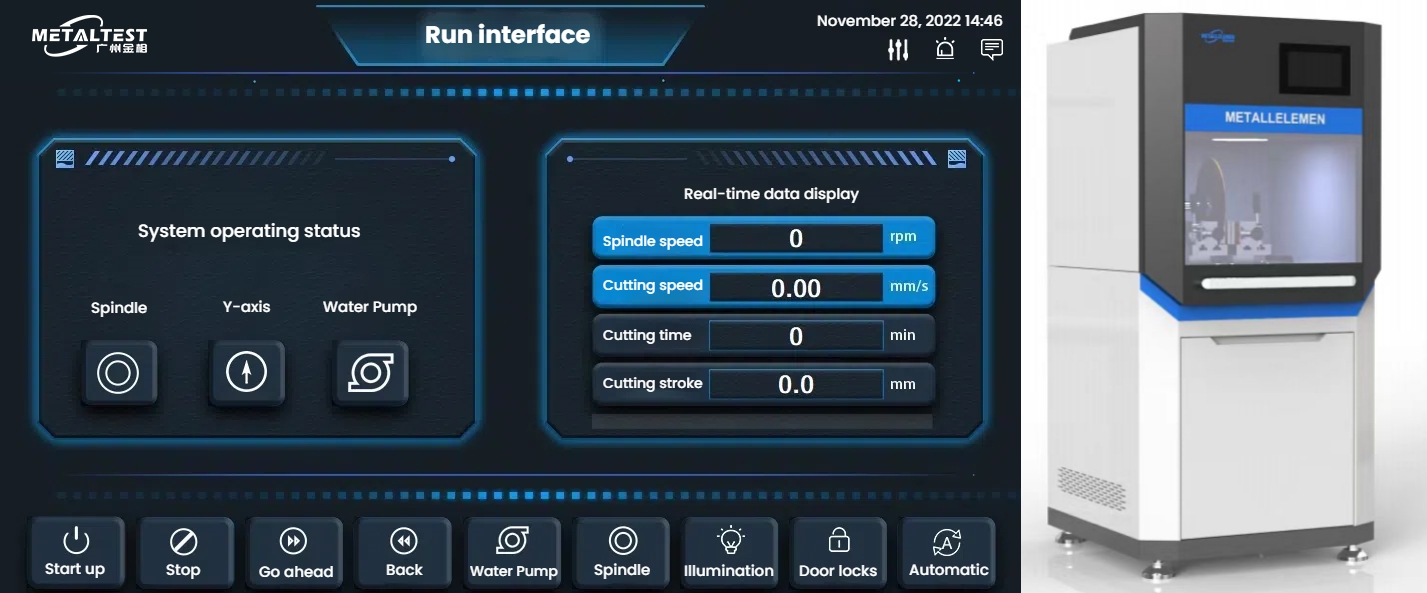

Control System ★ | 7-inch color touch screen, PLC control system |
Maximum cutting size ★ | 380*140*60mm |
Maximum cutting diameter | 80mm |
Cutting method ★ | Intelligent automatic |
Send method | The advance and retreat ratio can be set arbitrarily |
Effective feed distance | 220mm |
Completion tracking ★ | LCD digital display (real-time display) |
Cutting table size★ | 310*280mm |
Cutting disc specifications | 250*32*2.0mm |

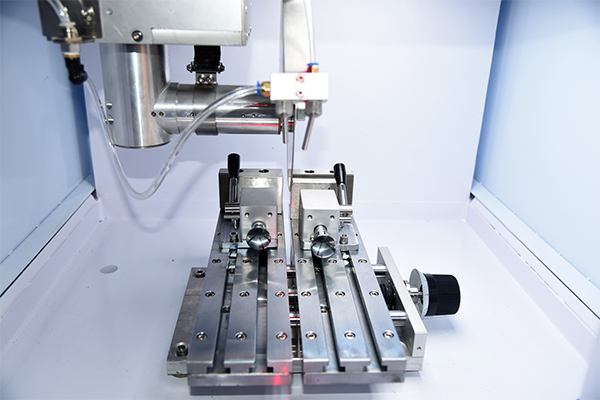

Support table specifications ★ | Split double-layer movable platform |
Cutting speed ★ | 1-100mm/min (stepless speed regulation) |
Online speed control | Arbitrary adjustment (1-100mm/min) |
Feed distance | Arbitrary setting (0-220mm) |
Reset method | Automatic reset (completion tracking) |
Cooling system ★ | Automatic (water cooling 4 channels) |
Water tank capacity | 30L |
Motor power | 2.0KW |
Machine Type | Floor standing integrated |
Power supply | 220V |
Weight | About 300kg |
Dimensions | About 750*850*1550mm |
Standard Configuration: | |
Host | 1 unit |
Cooling system | One set |
Y-axis moving platform | One set (on the host) |
X/Y bidirectional positioning platform | One set (on the host) |
Push fixture | Two pairs |
Random Tools | One set |
Fine section | Two pieces |
Technical Documents | One instruction manual, one certificate, one warranty card |
Optional: | Disc clamp, rack clamp, universal clamp, longitudinal clamp |
Other: | Special workpieces can be customized |
