Electronic Universal Testing Machine

WDW-S10
WDW-S20
WDW-S50
WDW-S100

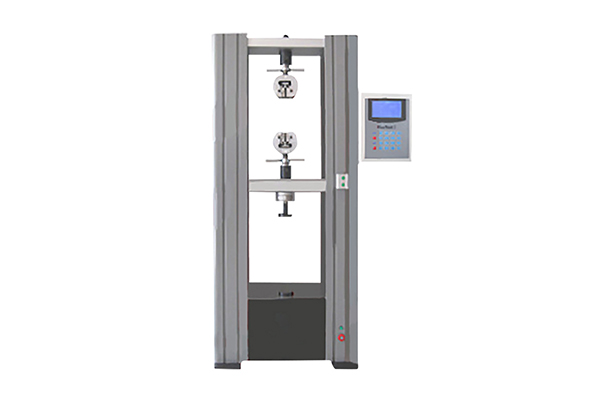

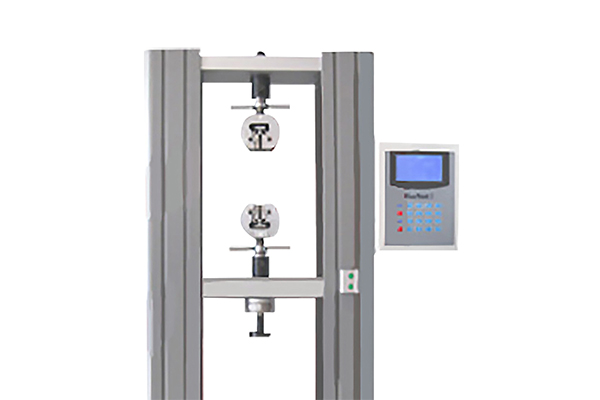

WDW-S Electronic Universal Testing Machine The main machine of this series of testing machines is a door-type floor-standing structure, which is mainly suitable for tensile, compression and bending tests of ferrous metals, non-ferrous metals, alloy materials, cast steel and cast iron, stainless steel, rubber, plastics, textiles, geotextiles, waterproof materials, wires and cables, net ropes, prestressed steel wires, glass fibers, wood, medical equipment, automotive components, road traffic and other materials. With the addition of accessories, shear, tear, peel and other tests can be performed. It is widely used in material inspection and analysis in factories and mining enterprises, hardware and building materials, aerospace, machinery manufacturing, wires and cables, rubber and plastics, textiles, home appliances, papermaking and other industries. It is an ideal testing equipment for scientific research institutes, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments.

Consult

Features
Technical Indicators
Overall Dimension

1. The testing machine adopts high-precision, fully digital speed control system and deceleration system to drive the precision screw pair for testing, realizing a wide range of test speed adjustment, with the characteristics of high rigidity, high precision, stable and reliable performance, low noise, and smooth operation. 2. Touch keyboard operation mode, large-screen LCD display real-time display of test force, displacement and speed, once set test parameters, continuous testing. 3. Automatically calculate the tensile strength, compression strength and elongation of the material, and have the maximum force peak hold, continuously adjustable test speed, automatic shutdown when the sample is broken, and automatic return, etc., which is convenient for batch operation, data can be queried, and can be connected to an external micro printer.
Product Model WDW-S10 WDW-S2 0 WDW-S50 WDW-S100 Technical Parameters Maximum test force 10kN 20kN 50kN 100kN Testing machine accuracy level Level 1 Test force resolution 0.001kN 0.01kN Test force measurement range 2%---100%F.S Relative error of test force indication ±1% Displacement measurement error ±1% Displacement resolution 0.01mm Speed measurement range 1-500 mm/min continuously adjustable 1-300mm/min continuously adjustable Speed control error ±1% Host parameters Effective stretching space 600mm Effective width 370mm 450mm Host size 760X660X1850mm 800X660X1980mm Power supply 220V±10%,50Hz Host weight 500kg 750kg Note: This machine complies with the testing machine manufacturing standard GB/T16491-2008 "Electronic Universal Testing Machine Standard".

Product Model		WDW-S10	WDW-S2 0	WDW-S50	WDW-S100
Technical Parameters	Maximum test force	10kN	20kN	50kN	100kN
	Testing machine accuracy level	Level 1
	Test force resolution	0.001kN			0.01kN
	Test force measurement range	2%---100%F.S
	Relative error of test force indication	±1%
	Displacement measurement error	±1%
	Displacement resolution	0.01mm
	Speed measurement range	1-500 mm/min continuously adjustable		1-300mm/min continuously adjustable
	Speed control error	±1%
Host parameters	Effective stretching space	600mm
	Effective width	370mm			450mm
	Host size	760X660X1850mm			800X660X1980mm
	Power supply	220V±10%,50Hz
	Host weight	500kg			750kg
