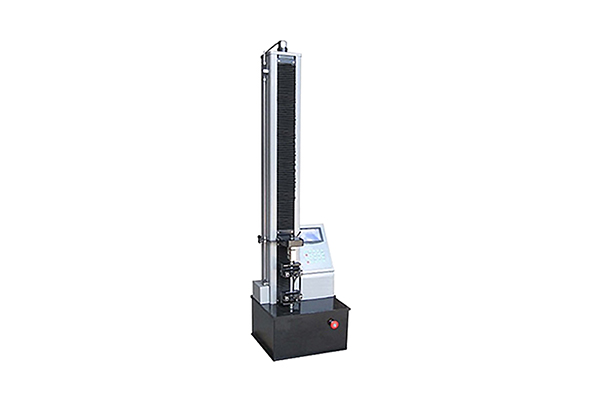

Electronic Tensile Testing Machine

WDW-S1
WDW-S2
WDW-S3
WDW-S5
WDW-S electronic tensile testing machine is mainly used for the tensile, compression, bending, tearing, peeling and other tests of metal wires, metal foils, plastics, glass fibers, rubber, wires and cables, adhesives, waterproof materials, food packaging, textile fibers, paper, packing tape, protective nets, wood fiberboards, fiberglass, PVC/PU materials, non-woven geotextiles, medical materials, springs and other materials. It is widely used in material inspection and analysis in factories and mining enterprises, hardware and building materials, aerospace, machinery manufacturing, wires and cables, rubber and plastics, textiles, home appliances, papermaking and other industries. It is an ideal testing equipment for scientific research institutes, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments.

Consult

Features
Technical Indicators
Overall Dimension

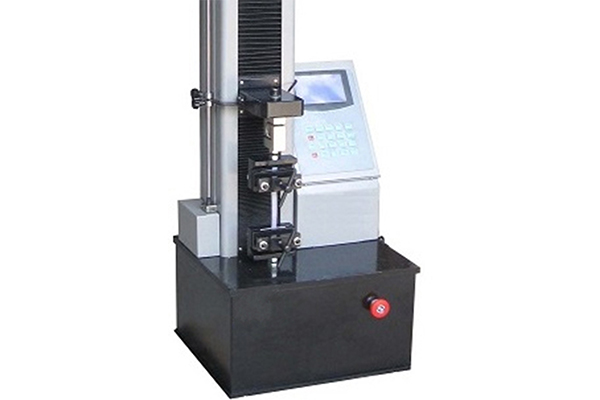

1. The main machine of the WDW-S series testing machine is a single-arm structure, adopts a high-precision, fully digital speed control system and a deceleration system, drives a precision ball screw pair for testing, and realizes a wide range of test speed adjustment. It has the characteristics of high rigidity, high precision, stable and reliable performance, low noise, and smooth operation. 2. Touch key operation mode, the large-screen LCD displays the test force in real time, automatically calculates the tensile strength, compression strength and elongation of the material, and has the maximum force peak value retention, the test speed is continuously adjustable, the sample is automatically stopped when it is pulled off, and the machine can be connected to an external micro printer.
Product Model WDW－S1 WDW-S2 WDW-S3 WDW-S5 Technical Parameters Maximum test force 1000N 2000N 3000N 5000N Testing machine accuracy level Level 1 Test force resolution 0.1N Test force measurement range 2%---100%F.S Relative error of test force indication ±1% Displacement measurement error ±1% Displacement resolution 0.01mm Speed measurement range 1-500 mm/min, continuously adjustable Speed control error ±1% Host parameters Effective stretching space 600mm Host size 425×350×1570mm Power supply 220V±10%，50Hz Host weight 90kg Note: 1. This machine complies with the testing machine manufacturing standard GB/T16491-2008 "Electronic Universal Testing Machine Standard". 2. The door-type host can be selected according to user requirements.

Product Model		WDW－S1	WDW-S2	WDW-S3	WDW-S5
Technical Parameters	Maximum test force	1000N	2000N	3000N	5000N
	Testing machine accuracy level	Level 1
	Test force resolution	0.1N
	Test force measurement range	2%---100%F.S
	Relative error of test force indication	±1%
	Displacement measurement error	±1%
	Displacement resolution	0.01mm
	Speed measurement range	1-500 mm/min, continuously adjustable
	Speed control error	±1%
Host parameters	Effective stretching space	600mm
	Host size	425×350×1570mm
	Power supply	220V±10%，50Hz
	Host weight	90kg
