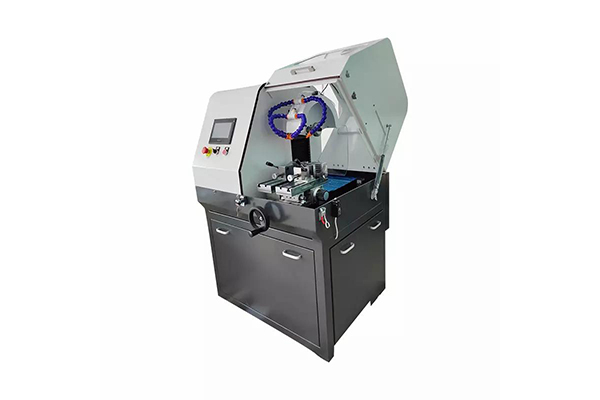

Model | WYL-300Z | |
Spindle speed | 100-3000r/min (stepless speed regulation) | |
Platform X Mobile | Automatic 70mm | |
X-axis speed | 0-100mm (stepless speed regulation) | |
Z-axis travel | 150mm | |
Z-axis speed | 0-200mm | |
Platform Y travel | Automatic 200mm | |
Platform Y speed | 0-200mm (stepless speed regulation) | |
Control System | 8-inch color touch screen, PLC control system | |
Maximum cutting size | Diameter 120mm | |
Cutting method | ∅300X100mm | |
Cutting method | Vertical cutting, layered cutting, horizontal cutting | |
Send method | The advance and retreat ratio can be set arbitrarily | |
Effective feed distance | 150+200mm | |
Completion tracking | LCD digital display (real-time display) | |
Cutting table size | 650X300mm | |
Cutting disc specifications | （250-380）X（2-3）X32mm | |
Support table specifications | Split double-layer movable platform | |
Clamping platform | Stainless steel countertops | |
Cutting speed | 1-200mm/min | |
Online speed control | Adjust at will | |
Reset method | Automatic reset | |
Cooling system | Automatic (water cooling 4 channels) | |
Water tank capacity | 75L | |
Motor power | 4KW (ABB motor) | |
Machine Type | Floor standing integrated | |
Power supply | 380V | |
Weight | 500KG | |
Standard Configuration: | ||
Host | 1 units | |
Cooling system | One set | |
Y-axis moving platform | One set (on the host) | |
X/Y bidirectional positioning platform | One set (on the host) | |

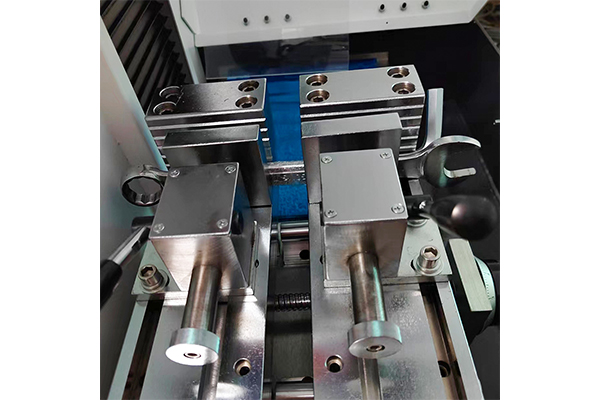

Push fixture | Two pairs | |
Random Tools | One set | |
Fine section | Two pieces | |
Technical Documents | One instruction manual, one certificate, one warranty card | |
