WYL-300S Manual Cutting Machine

WYL-300S
The WYL-300S manual cutting machine is mainly suitable for the preparation of laboratory metallographic samples. It is a fully enclosed automatic circulating water-cooled cutting machine. This series is a floor-standing integrated manual sampling and cutting machine specially developed for large workpieces. It uses a low-noise waterproof motor. To ensure that the best sample can be cut in a safe state, the machine adopts a left-right transparent super-large cutting chamber, which can place an extra-long workpiece cover structure and a professional clamping device, and is equipped with a cooling water tank (environmentally friendly). The configured coolant can be circulated to extend the service life and facilitate operation and maintenance.
It has cutting modes such as vertical cutting, horizontal cutting, and manual cutting, which can meet the cutting and sampling of various workpieces such as metals, crystals, ceramics and rocks.

Consult

Features
Technical Indicators
Overall Dimension


Model WYL-300S Cutting room specifications★ The large cutting chamber can accommodate extra-long workpieces Key Features Functions such as cutting, precision slicing, fixed depth grooving, etc. Spindle speed★ 2800r/min (fixed speed) Platform X Mobile★ Manual 100mm Maximum cutting size Diameter 160mm Disc cutting size 250X100mm (outer diameter x height) Cutting method★ Vertical cutting, horizontal cutting Effective feed distance★ 300mm Cutting table size★ 650X365mm Cutting disc specifications （250-400）X（2-3）X32mm Cooling system Automatic (water cooling 4 channels) Water tank capacity 60L Motor power★ 5.5KW motor Machine Type Floor standing integrated Power supply 380V Weight 900KG Standard Configuration: Host 1 units Cooling system One set Random Tools One set Quick clamp Two pieces Technical Documents One instruction manual, one certificate, one warranty card Optional Disc clamp, rack clamp, universal clamp, longitudinal clamp Other Special workpieces can be customized

Model	WYL-300S
Cutting room specifications★	The large cutting chamber can accommodate extra-long workpieces
Key Features	Functions such as cutting, precision slicing, fixed depth grooving, etc.
Spindle speed★	2800r/min (fixed speed)
Platform X Mobile★	Manual 100mm
Maximum cutting size	Diameter 160mm
Disc cutting size	250X100mm (outer diameter x height)
Cutting method★	Vertical cutting, horizontal cutting
Effective feed distance★	300mm
Cutting table size★	650X365mm
Cutting disc specifications	（250-400）X（2-3）X32mm

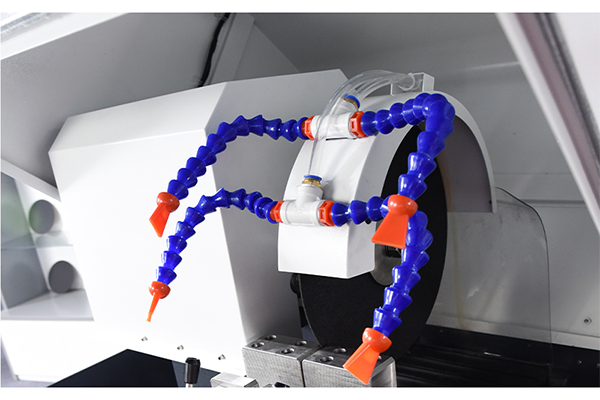

Cooling system	Automatic (water cooling 4 channels)
Water tank capacity	60L
Motor power★	5.5KW motor
Machine Type	Floor standing integrated
Power supply	380V
Weight	900KG
Standard Configuration:
Host	1 units
Cooling system	One set
Random Tools	One set
Quick clamp	Two pieces
Technical Documents	One instruction manual, one certificate, one warranty card
Optional	Disc clamp, rack clamp, universal clamp, longitudinal clamp
Other	Special workpieces can be customized
