Spindle speed | 2840r/min |
Platform X Mobile | 50mm |
Platform Y travel | 280mm |
Maximum cutting size | 380*130*100mm |
Cutting method | Manual |
Effective feed distance | 250mm |
Cutting table size | 310*280mm |
Cutting disc specifications | （300-350）*2.0*32mm |
Support table specifications | Split double-layer movable platform |

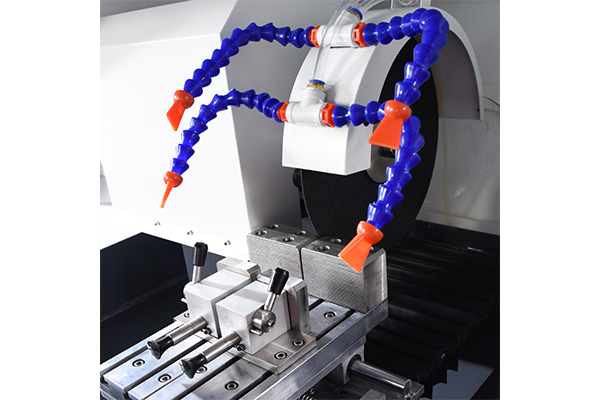

Cooling system | Automatic (water cooling 3 channels) |
Water tank capacity | 60L |
Motor power | 3.0KW |
Machine Type | Floor standing integrated |
Power supply | 380V |
Weight | 250KG |
Standard Configuration | |
Host | 1 unit |
Cooling system | One set |
Y-axis moving platform | One set (on the host) |
X/Y bidirectional positioning platform | One set (on the host) |
Quick clamp | One set |
Random Tools | One set |
Fine section | Two pieces |
Technical Documents | One instruction manual, one certificate, one warranty card |
Optional: | Disc clamp, rack clamp, universal clamp, longitudinal clamp |
Other: | Special workpieces can be customized (extra charge) |
