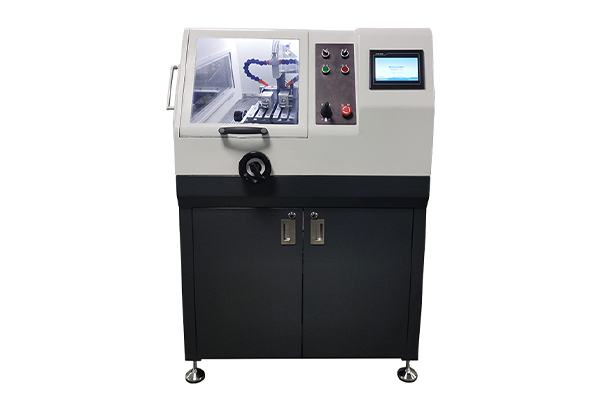

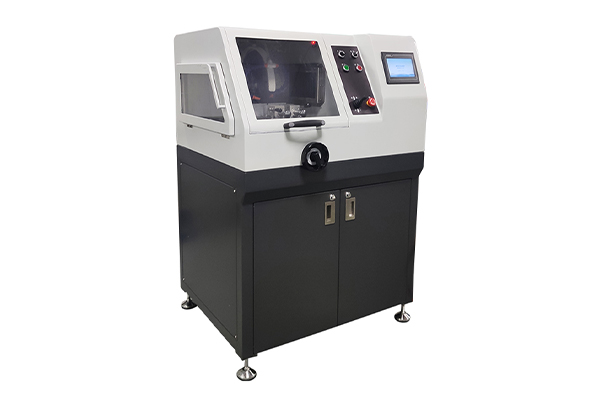

Model | WYL-100HC |
Spindle speed | Fixed speed 2880r/min (customizable speed adjustment) |
Platform X Mobile | Manual 60mm (scale 0.05mm) |
Platform Y travel | Automatic/Manual (240mm) |
Platform Y speed | 0-200mm/min (stepless speed regulation) |
Maximum cutting size | 245*155*100mm |
Maximum cutting diameter | 100mm |
Cutting method | Intelligent automatic/manual |
Send method | The advance and retreat ratio can be set arbitrarily |
Effective feed distance | 220mm |
Cutting table size | 25*280mm |
Cutting disc specifications | 350*32*2.5mm |
Support table specifications | Split double-layer movable platform |
Cutting speed | 1-100mm/min (stepless speed regulation) |
Online speed control | Arbitrary adjustment (1-100mm/min) |
Reset method | Automatic reset |
Cooling system | Automatic (water cooling 3 channels) |
Water tank capacity | 60L |
Water pump motor power | 120W |
Motor power | 4.0KW |
Machine Type | Floor standing integrated |
Machine size | 约1050*920*1430MM |
Power supply | 380V |
Weight | 400KG |
Standard Configuration: | |
Host | 1 unit |
Cooling system | One set |
Y-axis moving platform | One set (on the host) |
X/Y bidirectional positioning platform | One set (on the host) |
Push fixture | Two pairs |
Random Tools | One set |
Fine section | Two pieces |
Technical Documents | One instruction manual, one certificate, one warranty card |
Optional: | Disc clamp, rack clamp |
Other: | Special workpieces can be customized |
