Automatic Metallographic Specimen Grinding And Polishing Machine

Automatic Metallographic Specimen Grinding And Polishing Machine

WMP-2Z

Consult

Features
Technical Indicators
Overall Dimension

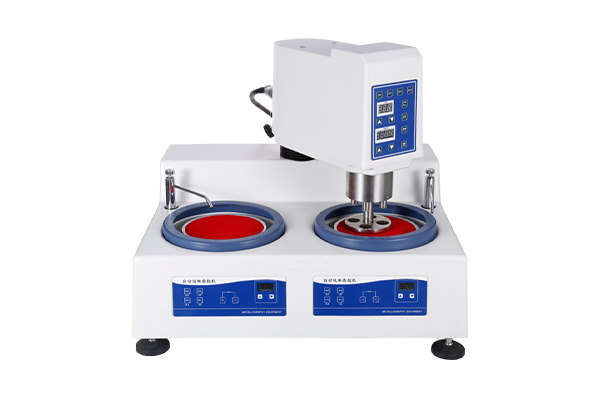

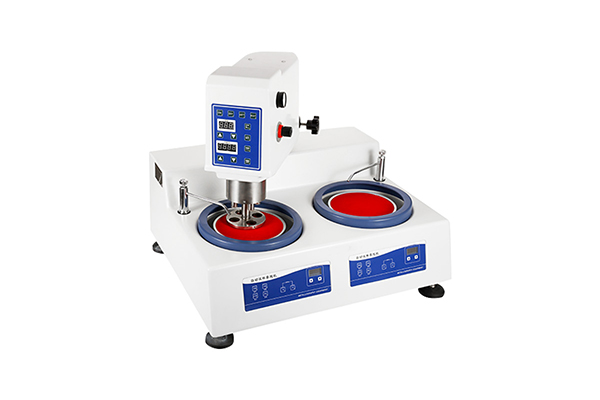

In the metallographic laboratory, during the preparation of metallographic samples, pre-grinding, polishing and grinding of samples are multiple essential procedures. The dirt collecting plate and cover of this machine WMP-2Z are made of PPC material, which is the latest product with novel and beautiful appearance. This machine is a metallographic sample grinding and polishing machine controlled by a single-chip microcomputer. The grinding disc has stepless speed regulation of 100RPM-1000RPM, and the digital tube displays the grinding disc speed. The machine is non-toxic with baking paint. The solid large-scale supporting chassis design ensures precise rotation balance. The powerful motor torque brings powerful power and brings efficient grinding and polishing experience. The spindle leak-proof design ensures that the bearings are almost not damaged. The super silent design brings a good use experience. The whole series supports the fast disc changing system, which has good flexibility. With the automatic grinding device, it can replace the manual grinding and polishing processes, and can be timed and the grinding head speed can be set. It can improve the grinding and polishing quality and production efficiency of the sample. It is a relatively ideal metallographic sample preparation equipment. This machine can adapt to the sample preparation of various materials. The diameter of the polishing disc of this machine is larger than that of similar domestic products. The throwing disc has independent speed operation, low noise, easy operation, beautiful appearance and safe use. It is the best equipment for metallographic sample preparation. After-sales service: one-year warranty and lifelong maintenance.
Grinding disc diameter: 230mm (customizable) Sandpaper diameter: 230mm Grinding disc speed: 100-1000r/min (stepless speed regulation) Four-speed fixed speed: 250r/min，500r/min 750r/min，1000r/min Power: 550w Grinding head speed: Stepless speed regulation 20-120r/min Cylinder pressure: Adjustable (recommended 0.2-0.3mpa) Grinding head power: Brushless DC motor 220v 100w Dimensions: 770*680*710mm(including automatic grinding and polishing head size) Net weight: 99kg

Grinding disc diameter:	230mm (customizable)
Sandpaper diameter:	230mm
Grinding disc speed:	100-1000r/min (stepless speed regulation)
Four-speed fixed speed:	250r/min，500r/min 750r/min，1000r/min
Power:	550w
Grinding head speed:	Stepless speed regulation 20-120r/min
Cylinder pressure:	Adjustable (recommended 0.2-0.3mpa)
Grinding head power:	Brushless DC motor 220v 100w
Dimensions:	770680710mm(including automatic grinding and polishing head size)
Net weight:	99kg
