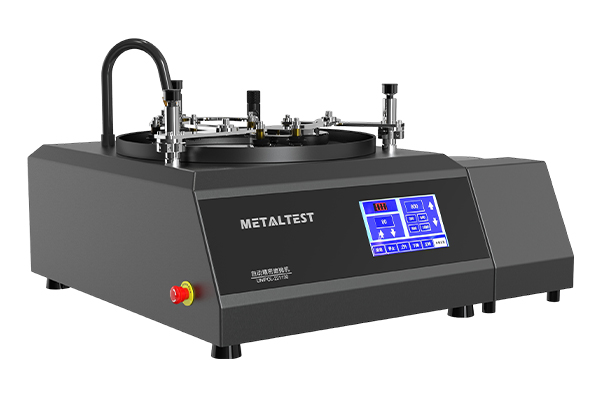

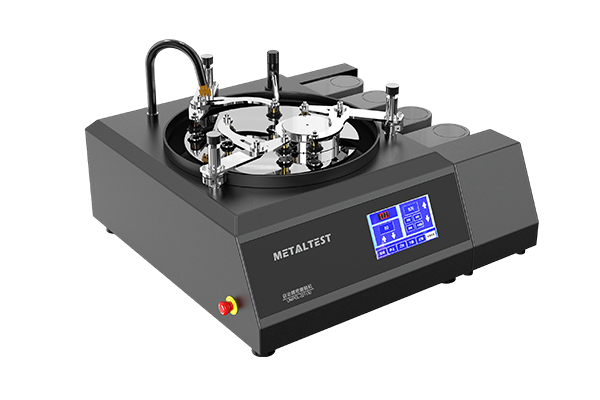

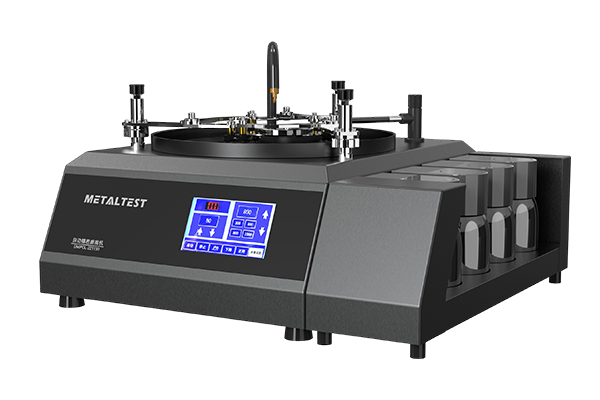

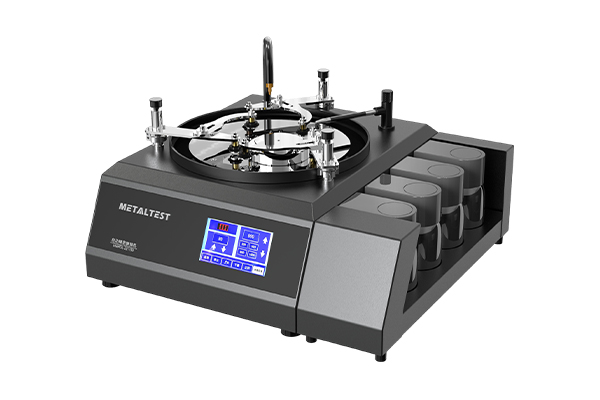

MP-1503 automatic precision grinding and polishing machine is used for grinding and polishing samples of crystal, ceramic, metal, glass, rock sample, mineral sample and other materials. It is widely used in the grinding and polishing of components in the optoelectronic industry, as well as the grinding data comparison and analysis experiment in the abrasive industry. This machine is equipped with a Φ381mm grinding and polishing disc and three processing stations, which can be used for grinding and polishing round pieces ≤Φ110mm or rectangular planes with a diagonal length ≤110mm. If equipped with appropriate accessories, high-quality surface grinding and polishing products can be mass-produced. Main features of the product: 1. Ultra-flat polishing disc (flatness is less than 0.0025mm per 25mm×25mm). 2. Ultra-precision rotating axis (pallet end jump is less than 0.02mm). 3. There are three processing stations. 4. The spindle rotation adopts stepless speed control, and a digital display is provided to display the number of revolutions in real time. 5. Equipped with a timer, the working time can be accurately controlled (between 0-300h). 6. Optional automatic drip feeder or circulation pump makes grinding and polishing more convenient and quick.
1. Power supply: 110V/220V 2. Power: 410W 3. Grinding and polishing disc speed: 0-126rpm 4. Workstations: 3 5. Support arm swing times: 0-9 times/min 6. Pallet end jump: 0.02/332mm 7. Grinding and polishing disc: Φ381mm 8. Loading tray: Φ110mm Product specifications: Dimensions: 720mm×580mm×380mm. Weight: 90kg
