Fully Automatic Intelligent Grinding And Polishing Machine

Fully Automatic Intelligent Grinding And Polishing Machine

MP-2ZS 2ZA

Consult

Features
Technical Indicators
Overall Dimension

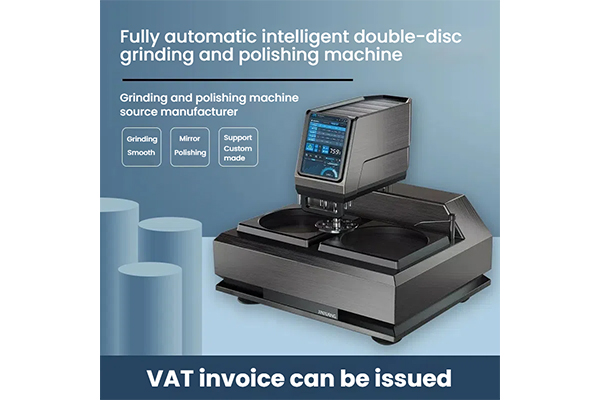

MP-2ZA: This grinding and polishing machine is a double-disc desktop machine with an intelligent Android operation control system and a high-definition 2K touch screen. The system adopts intelligent fully automatic operation, and can also be used manually and automatically at the same time. It has a practical and generous appearance and 304 stainless steel sheet metal electroplating process. It is suitable for pre-grinding, grinding and polishing operations on metallographic specimens. This machine uses a servo motor to achieve precise left and right positioning of the grinding and polishing head. The grinding and polishing disc is also powered by a servo motor and can provide a speed of 50~1500 rpm. All actions are automatically controlled by the program, and the program can be freely input into the Android panel by the staff according to the conditions of use. Except for the manual operation of the sample clamping, all other actions of this grinding and polishing machine are automatically operated by the machine, which greatly improves the work efficiency and stability. The machine has an external dripping device, which can freely set the dripping time and pause time, greatly improving the sample preparation effect. The machine is easy to use, safe and reliable, and is an ideal sample preparation equipment for factories, enterprises, scientific research units and laboratories of colleges and universities. MP-2ZS: This grinding and polishing machine is a double-disc desktop machine with a PLC intelligent control system and a 10-inch touch screen. The system adopts intelligent fully automatic operation and can also be used manually and automatically at the same time. It has a practical and generous appearance and 304 stainless steel sheet metal electroplating process. It is suitable for pre-grinding, grinding and polishing operations on metallographic specimens. This machine uses a servo motor to achieve precise left and right positioning of the grinding and polishing head. The grinding and polishing disc is also powered by a servo motor and can provide a speed of 50~1500 rpm. All actions are automatically controlled by the program, and the program can be freely input by the staff according to the conditions of use. Except for the manual operation of sample clamping, all other actions of this grinding and polishing machine are automatically operated by the machine, which greatly improves work efficiency and stability. The machine has an external dripping device, which can freely set the dripping time and pause time, greatly improving the sample preparation effect. The machine is easy to use, safe and reliable, and is an ideal sample preparation equipment for factories, enterprises, scientific research units and laboratories of colleges and universities.
MP-2ZA:
Body form
Desktop
Clamping quantity
Φ30mm*8 (Special specifications can be customized)
Pressurization method
Pneumatic/single point
Single point pressure
0-50N
How it works
Smart Mode/Manual Mode
Control System
Android control system/HD 2K touch screen
Grinding and polishing speed
50-1500 rpm (intelligent speed regulation)
Grinding head speed
20-120 rpm (intelligent speed regulation)
Grinding parameters
Store 100 grinding and polishing programs
Abrasive Addition
Dual-channel intelligent automatic spraying
Feeding interval
Intelligent setting, minimum feeding interval 1S
Spraying time
Intelligent setting, minimum spraying time 1S
Grinding time
0-9999 seconds x2
Spindle motor
400W 220V servo motor
Grinding head motor
100W Brushless DC Motor
Grinding disc motor
1000W*2 servo motor
Grinding sample diameter
Φ8-40mm (special specifications and sizes can be selected)
Grinding disc diameter
250mm (optional 200, 230, 300mm)
Dimensions
840*860*865mm
Packing size
1000*900*950mm (including cabinet and station board)
Product Net Weight
152kg
Product Gross Weight
197kg (including box and stand)
Power supply
220V/50HZ/3000W
Standard Configuration
Host
1 system
Aluminum grinding disc
1 unit
Aluminum polishing disc
1 unit
Magnetic polishing disc
2 pieces
Anti-stick disc
3 pieces
Automatic spraying system
1 set
Specimen holding plate
1 unit
Polishing flannel
2 sheets
Metallographic sandpaper
12 sheets
Alumina polishing powder
100g
Power cord
1 meter/root
Water inlet pipe
1 meter/root
Outlet pipe
1 meter/root
Intake pipe
1 meter/root
Optional:
Silent air pump, diamond grinding disc, special fixture.
Common consumables (optional)
Metallographic sandpaper
180#240#320#400#600#800#1000#1200#2000#3000#4000#5000#etc.
Diamond grinding disc
180#240#320#400#600#800#1000#1200#2000#3000#4000#5000#etc.
Diamond sandpaper
45-0.3um etc.
Polishing cloth
Red velvet/grey velvet/black velvet/pink velvet/navy/nylon/canvas etc.
Diamond polishing agent
W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc.
Diamond Suspension
W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc.
Alumina polishing powder
W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc.

MP-2ZS:
Body form
Desktop
Clamping quantity
Φ30mm*8 (Special specifications can be customized)
Pressurization method
Pneumatic/single point
Single point pressure
0-50N
How it works
Smart Mode/Manual Mode
Control System
PLCControl System/10’ touch screen
Grinding and polishing speed
50-1500 rpm (intelligent speed regulation)
Grinding head speed
20-120 rpm (intelligent speed regulation)
Grinding parameters
Store 100 grinding and polishing programs
Abrasive Addition
Dual-channel intelligent automatic spraying
Feeding interval
Intelligent setting, minimum feeding interval 1S
Spraying time
Intelligent setting, minimum feeding interval 1S
Grinding time
0-9999 seconds x2
Spindle motor
400W 220V servo motor (Panasonic servo motor can be customized)
Grinding head motor
100W brushless DC motor (Panasonic servo motor can be customized)
Grinding disc motor
1000W * 2 servo motors (Panasonic servo motors can be customized)
Grinding sample diameter
Φ8-40mm (special specifications and sizes can be selected)
Grinding disc diameter
250mm (optional 200, 230, 300mm)
Dimensions
840*860*865mm
Packing size
1000*900*950mm (including cabinet and station board)
Product Net Weight
152kg
Product Gross Weight
197kg (including box and stand)
Power supply
220V/50HZ/3000W
Standard Configuration
Host
1 system
Aluminum grinding disc
1 unit
Aluminum polishing disc
1 unit
Magnetic polishing disc
2 pieces
Anti-stick disc
3 pieces
Automatic spraying system
1 set
Specimen holding plate
1 unit
Polishing flannel
2 sheets
Metallographic sandpaper
12 sheets
Alumina polishing powder
100g
Power cord
1 meter/root
Water inlet pipe
1 meter/root
Outlet pipe
1 meter/root
Intake pipe
1 meter/root
Optional:
Silent air pump, diamond grinding disc, special fixture.
Common consumables (optional)
Metallographic sandpaper
180#240#320#400#600#800#1000#1200#2000#3000#4000#5000#etc.
Diamond grinding disc
180#240#320#400#600#800#1000#1200#2000#3000#4000#5000#etc.
Diamond sandpaper
45-0.3um etc.
Polishing cloth
Red velvet/grey velvet/black velvet/pink velvet/navy/nylon/canvas etc.
Diamond polishing agent
W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc.
Diamond Suspension
W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc.
Alumina polishing powder
W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc.

Body form	Desktop
Clamping quantity	Φ30mm*8 (Special specifications can be customized)
Pressurization method	Pneumatic/single point
Single point pressure	0-50N
How it works	Smart Mode/Manual Mode
Control System	Android control system/HD 2K touch screen
Grinding and polishing speed	50-1500 rpm (intelligent speed regulation)
Grinding head speed	20-120 rpm (intelligent speed regulation)
Grinding parameters	Store 100 grinding and polishing programs
Abrasive Addition	Dual-channel intelligent automatic spraying
Feeding interval	Intelligent setting, minimum feeding interval 1S
Spraying time	Intelligent setting, minimum spraying time 1S
Grinding time	0-9999 seconds x2
Spindle motor	400W 220V servo motor
Grinding head motor	100W Brushless DC Motor
Grinding disc motor	1000W*2 servo motor
Grinding sample diameter	Φ8-40mm (special specifications and sizes can be selected)
Grinding disc diameter	250mm (optional 200, 230, 300mm)
Dimensions	840860865mm
Packing size	1000900950mm (including cabinet and station board)
Product Net Weight	152kg
Product Gross Weight	197kg (including box and stand)
Power supply	220V/50HZ/3000W
Standard Configuration
Host	1 system
Aluminum grinding disc	1 unit
Aluminum polishing disc	1 unit
Magnetic polishing disc	2 pieces
Anti-stick disc	3 pieces
Automatic spraying system	1 set
Specimen holding plate	1 unit
Polishing flannel	2 sheets
Metallographic sandpaper	12 sheets
Alumina polishing powder	100g
Power cord	1 meter/root
Water inlet pipe	1 meter/root
Outlet pipe	1 meter/root
Intake pipe	1 meter/root
Optional:	Silent air pump, diamond grinding disc, special fixture.
Common consumables (optional)
Metallographic sandpaper	180#240#320#400#600#800#1000#1200#2000#3000#4000#5000#etc.
Diamond grinding disc	180#240#320#400#600#800#1000#1200#2000#3000#4000#5000#etc.
Diamond sandpaper	45-0.3um etc.
Polishing cloth	Red velvet/grey velvet/black velvet/pink velvet/navy/nylon/canvas etc.
Diamond polishing agent	W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc.
Diamond Suspension	W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc.
Alumina polishing powder	W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc.
