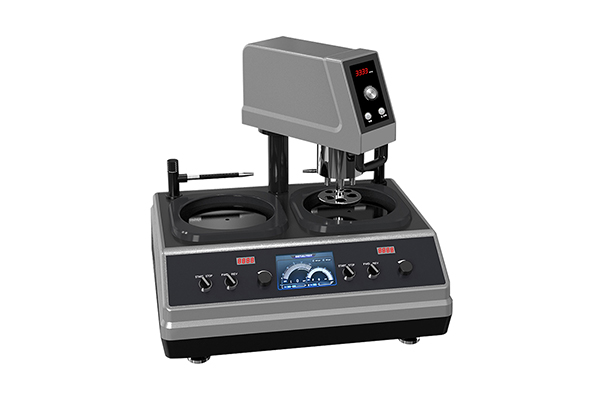

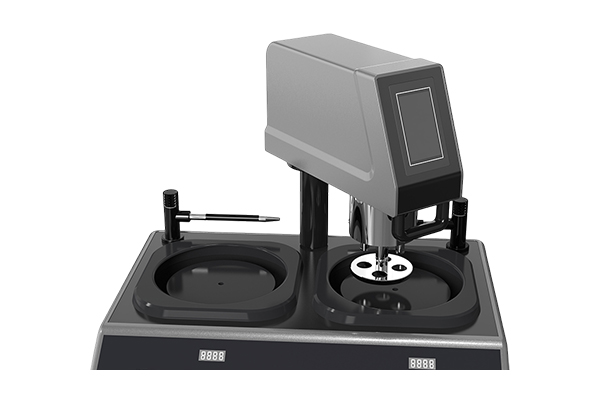

Semi-Automatic Metallographic Grinding/Polishing Machine

Semi-Automatic Metallographic Grinding/Polishing Machine

MP-2DCH

Consult

Features
Technical Indicators
Overall Dimension

This grinding and polishing machine is a double-disc double-control double-motor semi-automatic metallographic grinding/polishing machine. It can be operated by two people at the same time. The grinding and polishing head can be used for the preparation of 1-4 samples. Single-point pressurization can use different pressures for each sample, greatly improving work efficiency. It is suitable for pre-grinding, grinding and polishing operations on metallographic samples. The host can achieve stepless speed change and random switching of steering. The left and right grinding and polishing discs can obtain a speed between 50-1500 rpm, making this machine more widely applicable. It is an indispensable equipment for users to make metallographic samples. This machine is equipped with a universal cooling device, which can cool the sample during pre-grinding to prevent the metallographic structure from being damaged due to overheating of the sample. The machine is easy to use, safe and reliable, and is an ideal sample preparation equipment for factories, scientific research institutions and laboratories of colleges and universities.
Main technical parameters Body material Plastic steel shell body Control High-definition touch screen control system Input voltage 220V 50HZ Spindle motor Brushless motor 300W*2 Machine power 600W Grinding and polishing disc diameter 200MM (8') double reel, double control Grinding and polishing disc speed 50-1500r/min Product size 650mm×500mm×350mm Packing size 770mm×620mm×380mm (outer box + station board) Product Net Weight 34 KG Grinding and polishing head parameters power supply 220V 50HZ Gripper size 30mm, 40mm (choose one) Speed 50r/min Pressurization method Single point pressurization Head pressure 0~40N Number of pressure heads 1~4pc Net weight 16kg Size 400*450*200mm Standard accessories Bright red velvet 2 pieces Metallographic sandpaper Ø200 #320 #600 #1500 #3000 3 pieces each Water inlet pipe 1 root Drain 1 root Clamp Ø32 1pc Alumina polishing powder 50g/1 bottle Aluminum buckle ring 2pc Water retaining ring 2pc Brush 1pc Product Brochure One copy Product Certificate One copy Product Packing List One copy

Main technical parameters
Body material	Plastic steel shell body
Control	High-definition touch screen control system
Input voltage	220V 50HZ
Spindle motor	Brushless motor 300W*2
Machine power	600W
Grinding and polishing disc diameter	200MM (8') double reel, double control
Grinding and polishing disc speed	50-1500r/min
Product size	650mm×500mm×350mm
Packing size	770mm×620mm×380mm (outer box + station board)
Product Net Weight	34 KG
Grinding and polishing head parameters
power supply	220V 50HZ
Gripper size	30mm, 40mm (choose one)
Speed	50r/min
Pressurization method	Single point pressurization
Head pressure	0~40N
Number of pressure heads	1~4pc
Net weight	16kg
Size	400450200mm
Standard accessories
Bright red velvet	2 pieces
Metallographic sandpaper	Ø200 #320 #600 #1500 #3000 3 pieces each
Water inlet pipe	1 root
Drain	1 root
Clamp	Ø32 1pc
Alumina polishing powder	50g/1 bottle
Aluminum buckle ring	2pc
Water retaining ring	2pc
Brush	1pc
Product Brochure	One copy
Product Certificate	One copy
Product Packing List	One copy
