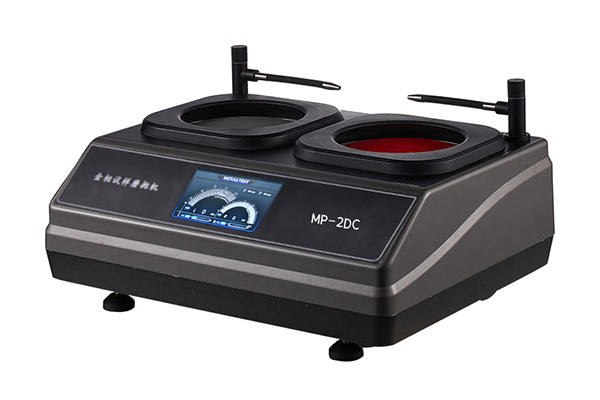

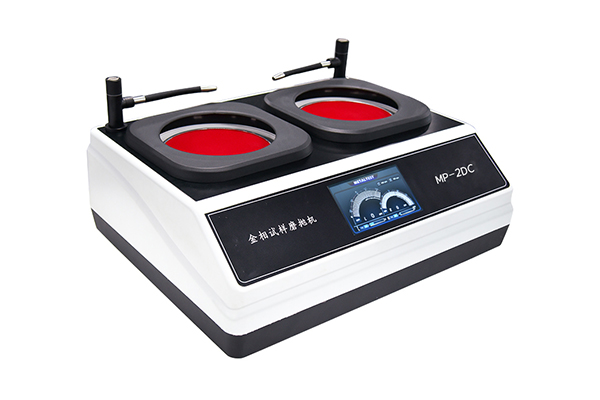

Double Disc Double Control Grinding/Polishing Machine

MP-2DC

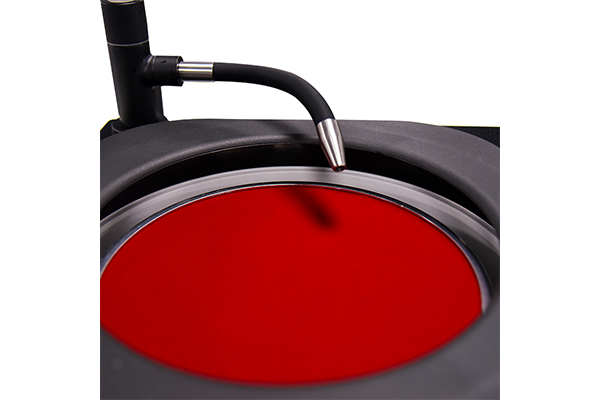

This grinding and polishing machine is a double-disc, double-control, double-motor machine with a high-definition touch screen control system. It can be operated by two people at the same time and is suitable for pre-grinding, grinding and polishing of metallographic specimens. This machine can achieve infinitely variable speed and random switching of steering. The left and right grinding and polishing discs can obtain a speed between 50-1500 rpm, making this machine more widely applicable. It is an indispensable equipment for users to make metallographic specimens. This machine is equipped with a cooling device, which can cool the specimen during pre-grinding to prevent the metallographic structure from being destroyed due to overheating of the specimen. The machine is easy to use, safe and reliable, and is an ideal sample preparation equipment for factories, scientific research institutions and laboratories of colleges and universities.

Body material

Plastic steel shell body

Control

High-definition touch screen control system

Input voltage

220V 50HZ

Spindle motor

Brushless motor 300W*2

Machine power

600W

Grinding and polishing disc diameter

200MM (8') double reel, double control

Grinding and polishing disc speed

50-1500r/min

Product size

650mm×500mm×350mm

Packing size

770mm×620mm×380mm (outer box + station board)

Product Net Weight

34 KG

Product Gross Weight

50 KG (including box and stand)

Customized colors

White/Black

Standard accessories

Bright red velvet

2 pieces

Metallographic sandpaper

Ø200 #320 #600 #1500 #3000 3 pieces each

Water inlet pipe

1 root

Drain

1 root

Clamp

Ø32  1pc

Alumina polishing powder

50g/1 bottle

Aluminum buckle ring

2pc

Water retaining ring

2pc

Brush

1pc

Product Brochure

One copy

Product Certificate

One copy

Product Packing List

One copy

×
