Metallographic Automatic Grinding And Polishing Machine

Metallographic Automatic Grinding And Polishing Machine

MP-2DA

Consult

Features
Technical Indicators
Overall Dimension

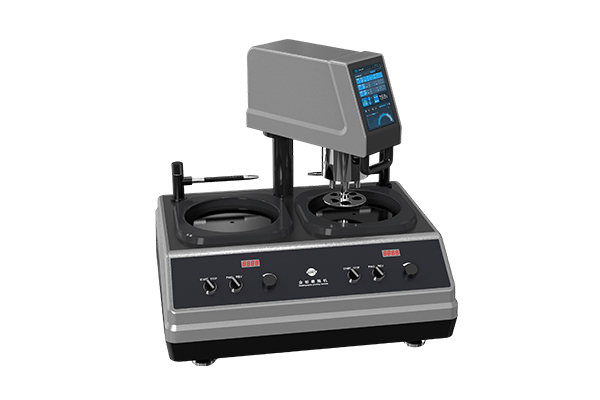

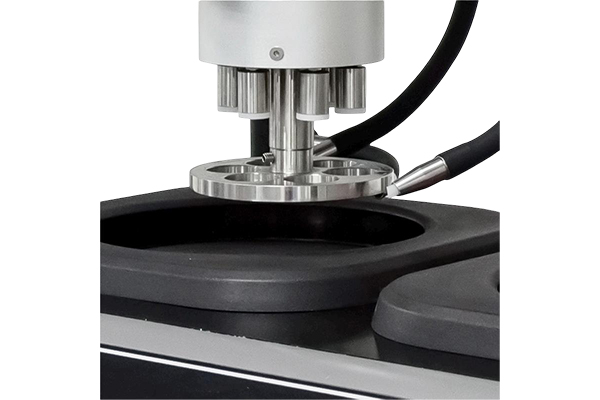

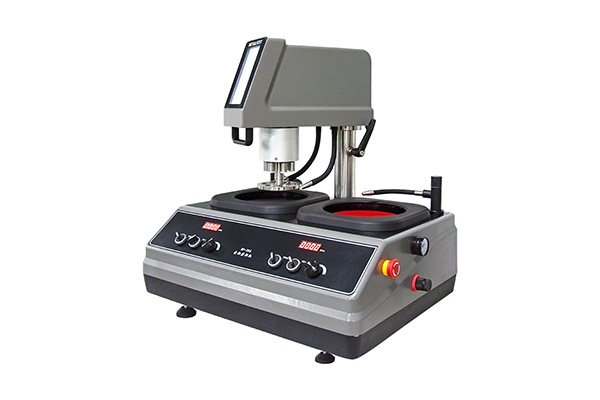

This machine is a double-disc dual-control desktop automatic grinding and polishing machine, PLC intelligent control system, 7-inch high-definition touch screen. The system can be used manually/automatically at the same time. It has a practical appearance, beautiful and generous appearance, and a plastic steel shell. It is suitable for pre-grinding, grinding and precision polishing of metallographic samples. This machine uses pneumatics to realize the rise and fall of the grinding and polishing head, and the grinding and polishing disc has stepless speed regulation, which can provide a speed of 50~1000 rpm. The forward and reverse rotation directions of the grinding and polishing can be switched, and all actions are automatically controlled by the program. This grinding and polishing machine can grind 6 samples at the same time, replacing manual operation, thereby greatly improving work efficiency and stability. It saves labor time costs and realizes batch analysis and detection. The machine has an external dual-channel dripping device, which can freely set the dripping time and pause time, greatly improving the accuracy of the sample preparation smooth surface. It is easy to use, safe and reliable. It is an ideal sample preparation equipment for factories, enterprises, scientific research institutions and college laboratories.
Batch clamping quantity Φ30mm*6pcs Grinding and polishing disc diameter Φ203mm (customizable) Single point pressure 0-50N Grinding head lifting method pneumatic How it works Automatic mode/Manual mode Control System PLC control system/7' high definition touch screen Grinding and polishing speed 50-1000 rpm (customizable) Grinding head speed 20-120 rpm (customizable) Abrasive Addition Dual-channel intelligent automatic spraying Feeding interval Intelligent setting, minimum feeding interval 1S, maximum dripping time 9999S Grinding time 0-9999 seconds x2 Spindle Pneumatic lifting Grinding head motor 120W Brushless DC Motor Grinding disc motor 300W*2 brushless DC motor Sample block diameter Φ8-40mm (special specifications and sizes can be selected) Product size 670*620*680mm (length, width and height) Packing size 780*650*730mm Product Net Weight 65kg Power supply 220V/50HZ/3000W Standard Configuration Host 1 unit Aluminum grinding disc 1pc Aluminum polishing disc 1pc Automatic spraying system 1 set Specimen holding plate 1pc Polishing flannel 2 pieces Metallographic sandpaper 12 sheets Alumina polishing powder 100g Power cord 1 meter/root Water inlet pipe 1 meter/root Outlet pipe 1 meter/root Intake pipe 1 meter/root Optional: Silent air pump, diamond grinding disc, special fixture. Common consumables (optional) Metallographic sandpaper 180#240#320#400#600#800#1000#1200#2000#3000#4000#5000#etc. Diamond grinding disc 180#240#320#400#600#800#1000#1200#2000#3000#4000#5000#etc. Polishing cloth Red velvet/grey velvet/black velvet/pink velvet/navy/nylon/canvas etc. Diamond polishing agent W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc. Diamond Suspension W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc. Alumina polishing powder W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc.

Batch clamping quantity	Φ30mm*6pcs
Grinding and polishing disc diameter	Φ203mm (customizable)
Single point pressure	0-50N
Grinding head lifting method	pneumatic
How it works	Automatic mode/Manual mode
Control System	PLC control system/7' high definition touch screen
Grinding and polishing speed	50-1000 rpm (customizable)
Grinding head speed	20-120 rpm (customizable)
Abrasive Addition	Dual-channel intelligent automatic spraying
Feeding interval	Intelligent setting, minimum feeding interval 1S, maximum dripping time 9999S
Grinding time	0-9999 seconds x2
Spindle	Pneumatic lifting
Grinding head motor	120W Brushless DC Motor
Grinding disc motor	300W*2 brushless DC motor
Sample block diameter	Φ8-40mm (special specifications and sizes can be selected)
Product size	670620680mm (length, width and height)
Packing size	780650730mm
Product Net Weight	65kg
Power supply	220V/50HZ/3000W
Standard Configuration
Host	1 unit
Aluminum grinding disc	1pc
Aluminum polishing disc	1pc
Automatic spraying system	1 set
Specimen holding plate	1pc
Polishing flannel	2 pieces
Metallographic sandpaper	12 sheets
Alumina polishing powder	100g
Power cord	1 meter/root
Water inlet pipe	1 meter/root
Outlet pipe	1 meter/root
Intake pipe	1 meter/root
Optional:	Silent air pump, diamond grinding disc, special fixture.
Common consumables (optional)
Metallographic sandpaper	180#240#320#400#600#800#1000#1200#2000#3000#4000#5000#etc.
Diamond grinding disc	180#240#320#400#600#800#1000#1200#2000#3000#4000#5000#etc.
Polishing cloth	Red velvet/grey velvet/black velvet/pink velvet/navy/nylon/canvas etc.
Diamond polishing agent	W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc.
Diamond Suspension	W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc.
Alumina polishing powder	W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14 etc.
