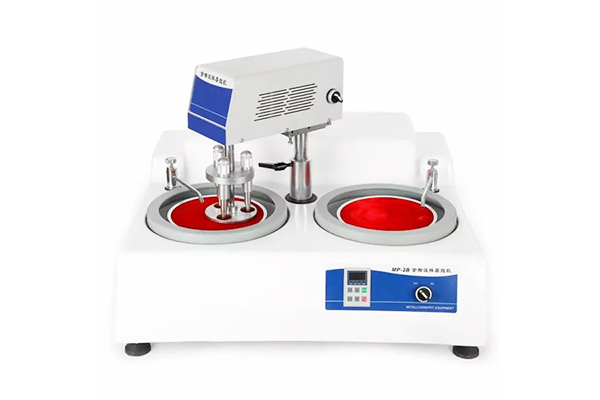

Metallographic Semi-Automatic Grinding And Polishing Machine

MP-2B+MPT-1
This grinding and polishing machine is a double-disc machine that can be operated by two people at the same time. It is suitable for pre-grinding, grinding and polishing of metallographic samples.
This machine can directly obtain a speed between 50 and 1000 rpm through a frequency converter, making the machine more widely applicable. It is an indispensable equipment for users to make metallographic samples.
This machine is equipped with a cooling device, which can cool the sample during pre-grinding to prevent the metallographic structure from being destroyed due to overheating of the sample. The machine is easy to use, safe and reliable, and is an ideal sample preparation equipment for factories, scientific research units and laboratories of colleges and universities.
Main technical parameters
1. Working voltage: 220V 50HZ 0020
2. Grinding disc diameter: φ203mm
Grinding and polishing speed: 50-1000 rpm
3. Motor: YSS7124, 550W
4. Product size: 710×670×330mm
5. Packing size: 800×800×430mm
6. Net weight: 46kg
7. Gross weight: 60kg
Purpose of grinding and polishing head:
MPT-1 grinding and polishing head is a product suitable for laboratory use. It can be used for the preparation of one to three samples. Different pressures can be used for each sample, and it is equipped with an adjustable dripping and dosing device.
Grinding head technical parameters:
1. Power supply: 220V 50HZ
2. Clamp size: 22mm, 30mm, 45mm (choose one of the three)
3. Speed: 50r/min
4. Pressure: 0~40N
5. Number of clamps: 1-3
6. Net weight: 15 kg
After-sales service: free warranty for one year, lifetime maintenance.
×
