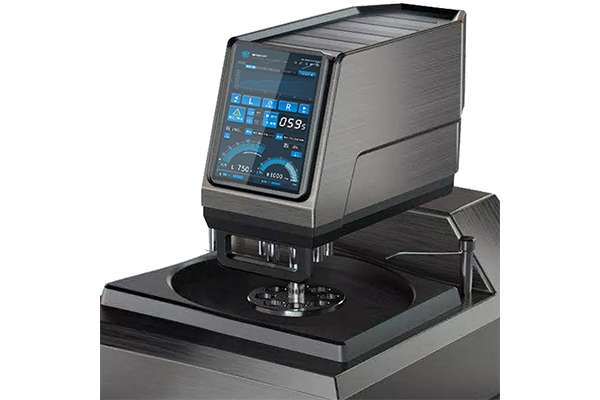

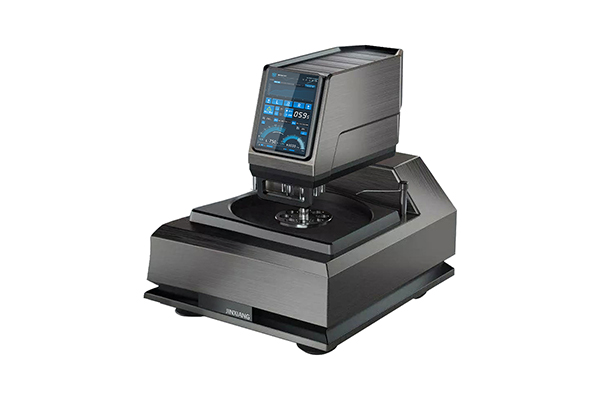

Single Disc Intelligent Fully Automatic Grinding And Polishing Machine

Single Disc Intelligent Fully Automatic Grinding And Polishing Machine

MP-1ZS

Consult

Features
Technical Indicators
Overall Dimension

This machine is a single-disc tabletop intelligent automatic grinding and polishing machine. It can realize two modes: intelligent and manual. The spindle uses a servo motor and adopts a PLC intelligent control system. The machine adopts a 304 stainless steel shell and has a practical and generous appearance. It is suitable for pre-grinding, grinding and polishing operations on metallographic samples. This machine adopts electric lifting and can grind 8 samples at the same time. It has a single Φ250 mm (10") grinding and polishing disc, 50-1500r/min stepless speed regulation and 250/500/750/1000/1250/1500r/min 6-speed fixed speed, adjustable forward and reverse rotation, pneumatic single-point pressurization, adjustable pressure 10" high-definition touch screen, grinding and polishing head speed 20-100r/min stepless speed regulation, adjustable and customizable programming, all actions are automatically controlled by the program, and the program can be freely input by the staff according to the use conditions. Except for the manual operation of sample clamping, all other actions of this grinding and polishing machine are automatically operated by the machine, which greatly improves work efficiency and stability. This machine has a built-in dripping device, which allows you to freely set the dripping time and pause time, greatly improving the sample preparation effect. This machine is easy to use, safe and reliable, and is an ideal sample preparation equipment for factories, scientific research institutions, and university laboratories.
Body type Desktop Number of clamps Φ30mm*8 (special specifications can be customized) Pressure mode Pneumatic/single point Single point pressure 0-50N Operation mode Intelligent mode/manual mode Control system PLC control system/10' touch screen Polishing speed 50-1500 rpm (intelligent speed regulation) Grinding head speed 20-100 rpm (intelligent speed regulation) Grinding sample parameters Store 105 grinding and polishing schemes Abrasive addition Dual-channel intelligent automatic spraying Adding interval Intelligent setting, minimum feeding interval 1S Spraying time Intelligent setting, minimum spraying time 1S Grinding sample time 0-9999 seconds X2 Spindle motor 400W 220V servo motor (customizable Panasonic servo motor) Grinding head motor 100W DC brushless motor (customizable Panasonic servo motor) Grinding disc motor 1000W servo motor (customizable Panasonic servo motor) Grinding sample diameter Φ8-40mm (special specifications and sizes can be selected) Grinding disc diameter 250mm (optional 200, 230, 300mm) Overall dimensions 800*650*850mm Packing dimensions 850*750*900mm Net weight of product 86.5kg Power supply 220V/50HZ/1500W

Body type	Desktop
Number of clamps	Φ30mm*8 (special specifications can be customized)
Pressure mode	Pneumatic/single point
Single point pressure	0-50N
Operation mode	Intelligent mode/manual mode
Control system	PLC control system/10' touch screen
Polishing speed	50-1500 rpm (intelligent speed regulation)
Grinding head speed	20-100 rpm (intelligent speed regulation)
Grinding sample parameters	Store 105 grinding and polishing schemes
Abrasive addition	Dual-channel intelligent automatic spraying
Adding interval	Intelligent setting, minimum feeding interval 1S
Spraying time	Intelligent setting, minimum spraying time 1S
Grinding sample time	0-9999 seconds X2
Spindle motor	400W 220V servo motor (customizable Panasonic servo motor)
Grinding head motor	100W DC brushless motor (customizable Panasonic servo motor)
Grinding disc motor	1000W servo motor (customizable Panasonic servo motor)
Grinding sample diameter	Φ8-40mm (special specifications and sizes can be selected)
Grinding disc diameter	250mm (optional 200, 230, 300mm)
Overall dimensions	800650850mm
Packing dimensions	850750900mm
Net weight of product	86.5kg
Power supply	220V/50HZ/1500W
