Single Disc Semi-Automatic Grinding And Polishing Machine
Single Disc Semi-Automatic Grinding And Polishing Machine
Single Disc Semi-Automatic Grinding And Polishing Machine

Single Disc Semi-Automatic Grinding And Polishing Machine

MP-1DSH

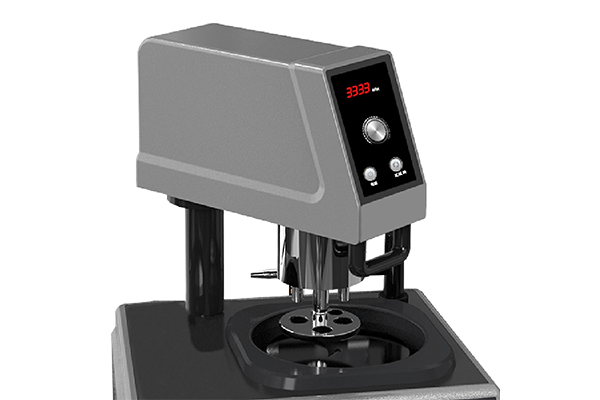

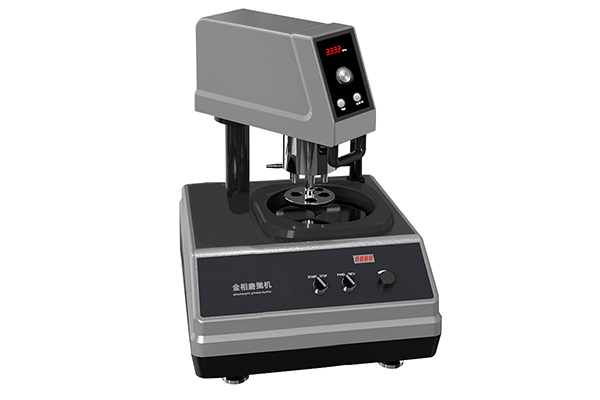

This grinding and polishing machine is a single-disc single-control semi-automatic metallographic grinding/polishing machine. The grinding and polishing head can grind 1-4 samples at the same time. The grinding and polishing disc is Φ200 mm (8") with single-point pressure. Different pressures can be applied to each sample, greatly improving work efficiency. It is suitable for pre-grinding, grinding and polishing of metallographic samples. The grinding and polishing disc can achieve 50-1500r/min stepless speed change and free switching of direction, and forward and reverse rotation are adjustable. The grinding and polishing head speed is 50r/min, which makes this machine more widely applicable. It is an indispensable equipment for users to make metallographic samples. This machine is equipped with a universal cooling device, which can cool the sample during pre-grinding to prevent the metallographic structure from being damaged due to overheating of the sample. The machine is easy to use, safe and reliable, and is an ideal sample preparation equipment for factories, scientific research institutions and university laboratories.

Machine material

Plastic steel housing

Spindle motor

Brushless motor 300W + brushless motor 100W

Input voltage

220V 50HZ

Total power

400W

Grinding disc diameter

200MM (8')

Grinding disc speed

50-1500r/min

Product size

620*480*660mm

Packaging size

700*600*700mm

Product net weight

50kg

Power supply

220V 50HZ

Gripper size

30mm, 40mm (choose one)

Speed

50r/min

Pressure method

Single point pressurization

Pressure head

0-50N

Number of pressure heads

1-4 pcs

Net weight

16kg

×
