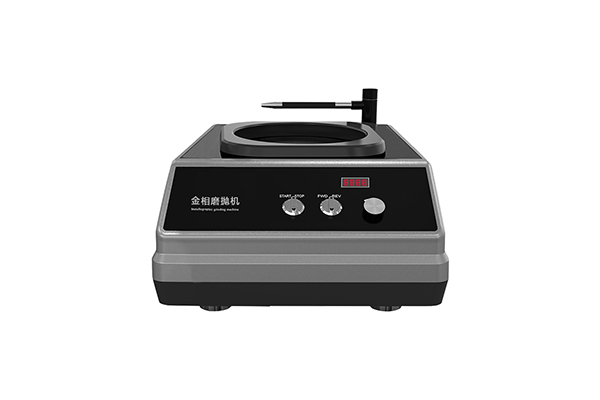

Single Disc Specimen Grinding And Polishing Machine

MP-1DS
This grinding and polishing machine is a desktop single-disk single-control motor, suitable for pre-grinding, grinding and polishing operations on metallographic samples. This machine can realize stepless speed change and random switching of direction, 50-1500 rpm stepless speed regulation, forward and reverse adjustable, so that this machine has a wider range of applications. It is an indispensable equipment for users to make metallographic samples. This machine is equipped with a cooling device, which can cool the sample during pre-grinding to prevent the metallographic structure from being destroyed due to overheating of the sample. The machine is easy to use, safe and reliable, and is an ideal sample preparation equipment for factories, scientific research units and laboratories of colleges and universities.

Main technical parameters

Machine material

Fiberglass resin fiber shell body

Input voltage

220V 50HZ

Total power

300W

Grinding disc diameter

200MM single plate single control

Grinding disc speed

50-1500r/min

Product size

510*425*367.04mm

Packaging size

(outer box + stand plate)

Product net weight

22KG

Product gross weight

30KG (including box and stand plate)

Standard accessories

Red velvet

2 sheets

Metallographic sandpaper

Ø200 #320#600#1500#3000 3 sheets each

Water inlet pipe

1 stick

Drain pipe

1 stick

Clamp

Ø32 1 piece

Aluminum oxide polishing powder

50G/1 bottle

Aluminum buckle ring

1 piece

Water retaining ring

1 piece

Brush

1 piece

Product manual

One piece

Product certificate

One piece

Product packing list

One piece


×
