Single Disc Semi-Automatic Grinding And Polishing Machine

Single Disc Semi-Automatic Grinding And Polishing Machine

MP-1DCH

Consult

Features
Technical Indicators
Overall Dimension

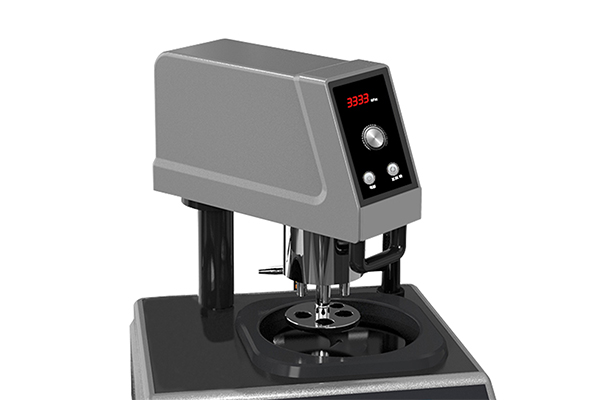

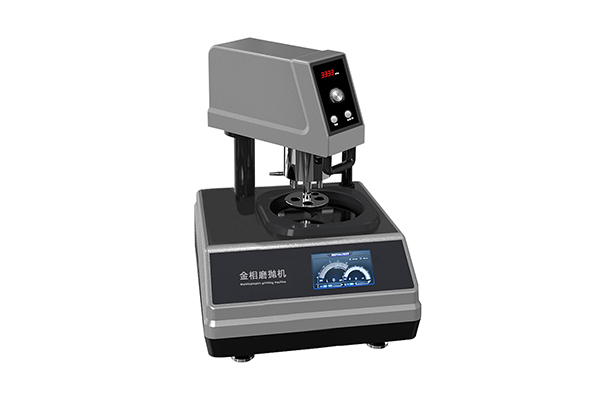

This grinding and polishing machine is a single-disc single-control semi-automatic metallographic grinding/polishing machine. The grinding and polishing head can grind 1-4 samples at the same time. The grinding and polishing disc is Φ200 mm (8") with single-point pressure and adjustable pressure. Different pressures can be applied to each sample, which greatly improves work efficiency. It is suitable for pre-grinding, grinding and polishing of metallographic samples. The grinding and polishing disc can achieve 50-1500r/min stepless speed change and random switching of the direction, and the forward and reverse rotation can be adjusted. The speed of the grinding and polishing head is 20-100r/min stepless adjustable, which makes this machine more widely applicable. It is an indispensable equipment for users to make metallographic samples. This machine is equipped with a universal cooling device, which can cool the sample during pre-grinding to prevent the metallographic structure from being damaged due to overheating of the sample. The machine is easy to use, safe and reliable. It is an ideal sample preparation equipment for factories, scientific research institutions and university laboratories.
Main technical parameters Machine material Plastic steel housing Control 7-inch high-definition touch screen control system Input voltage 220V 50HZ Spindle motor Brushless motor 300W Total power 300W Grinding disc diameter 200MM (8') single plate single control Grinding disc speed 50-1500r/min Product size 510*425*367.04mm Packaging size (outer box + stand) Net weight 22kg Gross weight 30kg (including box and stand) Customized color White/Black Grinding and polishing head parameters Power supply 220V 50HZ Gripper size 30mm, 40mm (choose one) Speed 20-100r/min Pressure method Single point pressurization Pressure head 0-50N Number of pressure heads 1-4 pieces Net weight 16kg Dimensions Standard accessories Red velvet 2 pieces Metallographic sandpaper Ø200 #320 #600 #1500 #3000 3 sheets each Water inlet pipe 1 stick Drain pipe 1 stick Clamp Ø32 1 piece Aluminum oxide polishing powder 50G/1 bottle Aluminum buckle ring 1 piece Water retaining ring 1 piece Brush 1 piece Product manual One piece Product certificate One piece Product packing list One piece

Main technical parameters
Machine material	Plastic steel housing
Control	7-inch high-definition touch screen control system
Input voltage	220V 50HZ
Spindle motor	Brushless motor 300W
Total power	300W
Grinding disc diameter	200MM (8') single plate single control
Grinding disc speed	50-1500r/min
Product size	510425367.04mm
Packaging size	(outer box + stand)
Net weight	22kg
Gross weight	30kg (including box and stand)
Customized color	White/Black
Grinding and polishing head parameters
Power supply	220V 50HZ
Gripper size	30mm, 40mm (choose one)
Speed	20-100r/min
Pressure method	Single point pressurization
Pressure head	0-50N
Number of pressure heads	1-4 pieces
Net weight	16kg
Dimensions
Standard accessories
Red velvet	2 pieces
Metallographic sandpaper	Ø200 #320 #600 #1500 #3000 3 sheets each
Water inlet pipe	1 stick
Drain pipe	1 stick
Clamp	Ø32 1 piece
Aluminum oxide polishing powder	50G/1 bottle
Aluminum buckle ring	1 piece
Water retaining ring	1 piece
Brush	1 piece
Product manual	One piece
Product certificate	One piece
Product packing list	One piece
