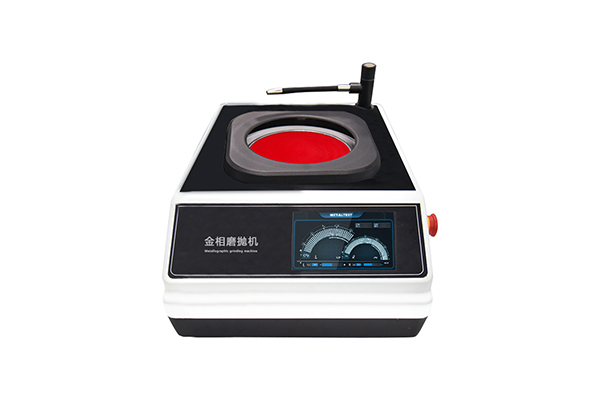

Single Disc Specimen Grinding And Polishing Machine

Single Disc Specimen Grinding And Polishing Machine

MP-1DC

Consult

Features
Technical Indicators
Overall Dimension

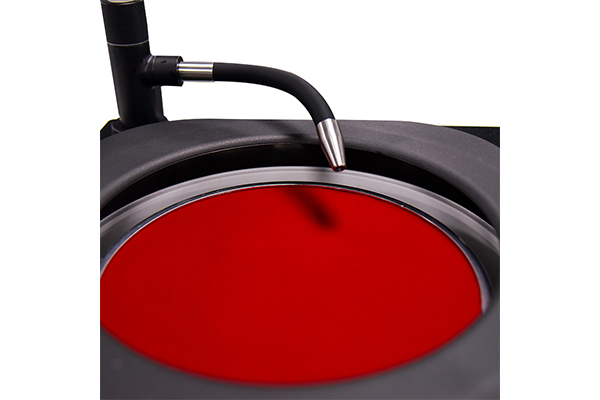

This grinding and polishing machine has a single disc and a single control motor, an industrial 7" touch screen control system, a grinding and polishing disc of Φ203mm (8"), and is suitable for pre-grinding, grinding and polishing operations on metallographic samples. This machine can achieve infinitely variable speed and random switching of direction, adjustable forward and reverse rotation, infinitely variable speed, 50-1500r/min, and customized colors, making this machine more widely applicable. It is an indispensable equipment for users to make metallographic samples. This machine is equipped with a cooling device, which can cool the sample during pre-grinding to prevent the metallographic structure from being destroyed due to overheating of the sample. The machine is easy to use, safe and reliable, and is an ideal sample preparation equipment for factories, scientific research institutions and laboratories of colleges and universities.
Main technical parameters Machine material Plastic steel housing Control 7-inch high-definition touch screen control system Input voltage 220V 50HZ Spindle motor Brushless motor 300W Total power 300W Grinding disc diameter 200MM (8') single plate single control Grinding disc speed 50-1500r/min Product size 510*425*367.04mm Packaging size (outer box + stand) Net weight 22kg Gross weight 30kg (including box and stand) Customized color White/Black Standard accessories Red velvet 2 sheets Metallographic sandpaper Ø200 #320#600#1500#3000 3 sheets each Water inlet pipe 1 stick Drain pipe 1 stick Clamp Ø32 1 piece Aluminum oxide polishing powder 50G/1 bottle Aluminum buckle ring 1 piece Water retaining ring 1 piece Brush 1 piece Product manual One piece Product certificate One piece Product packing list One piece

Main technical parameters
Machine material	Plastic steel housing
Control	7-inch high-definition touch screen control system
Input voltage	220V 50HZ
Spindle motor	Brushless motor 300W
Total power	300W
Grinding disc diameter	200MM (8') single plate single control
Grinding disc speed	50-1500r/min
Product size	510425367.04mm
Packaging size	(outer box + stand)
Net weight	22kg
Gross weight	30kg (including box and stand)
Customized color	White/Black
Standard accessories
Red velvet	2 sheets
Metallographic sandpaper	Ø200 #320#600#1500#3000 3 sheets each
Water inlet pipe	1 stick
Drain pipe	1 stick
Clamp	Ø32 1 piece
Aluminum oxide polishing powder	50G/1 bottle
Aluminum buckle ring	1 piece
Water retaining ring	1 piece
Brush	1 piece
Product manual	One piece
Product certificate	One piece
Product packing list	One piece
