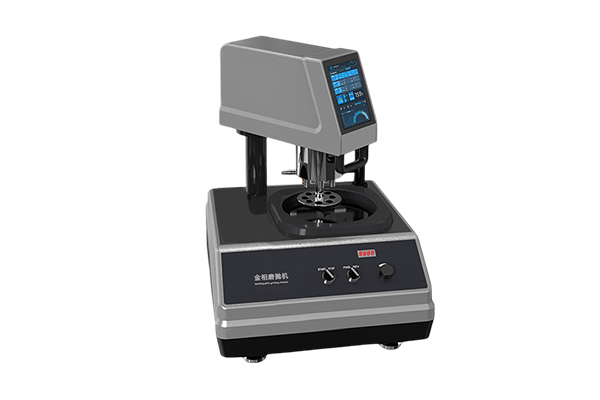

Single Disc Intelligent Fully Automatic Grinding And Polishing Machine

MP-1DA

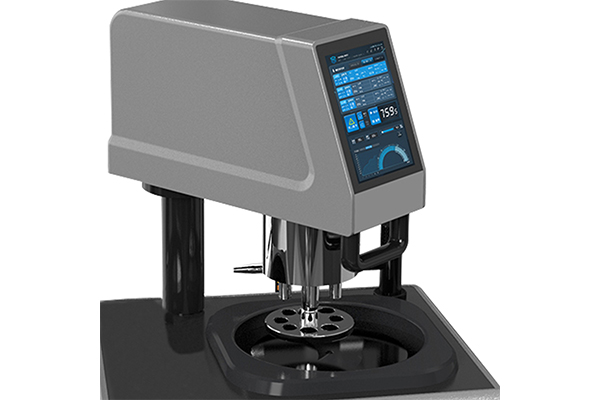

This machine is a single-disc single-control table automatic grinding and polishing machine. This machine realizes two modes: automatic and manual. It has a PLC intelligent control system and a 7-inch high-definition touch screen. It is suitable for pre-grinding, grinding and polishing operations on metallographic samples. This machine is pneumatically lifted and lowered. The grinding and polishing disc is powered by a DC brushless motor with stepless speed regulation. The grinding and polishing head is also powered by a DC brushless motor with stepless speed regulation. It can grind 6 samples at the same time. The single-disc Φ200 mm (8") grinding and polishing disc has a stepless speed regulation of 50-1000r/min forward and reverse. It has pneumatic single-point pressurization and adjustable pressure. The speed of the grinding and polishing head is steplessly adjustable from 20-120r/min. This machine is equipped with an external dual-channel drip bottle device, which can freely set the dripping time and pause time, greatly improving the sample preparation effect. The external cleaning device facilitates the maintenance and maintenance of the machine. It is easy to use, safe and reliable. It is an ideal sample preparation equipment for factories, enterprises, scientific research institutions and university laboratories.

Body type

Desktop

Number of clamps

Φ30mm*6

Pressure mode

Pneumatic/single point

Single point pressure

0-50N

Operation mode

Automatic mode/manual mode

Control system

PLC control system/7' high-definition touch screen

Grinding and polishing speed

50-1000 rpm (stepless speed regulation)

Grinding head speed

20-120 rpm (stepless speed regulation)

Abrasive addition

Dual-channel intelligent automatic spraying

Adding interval

Intelligent setting, minimum feeding interval 1S

Spraying time

Intelligent setting, minimum spraying time 1S

Grinding sample time

0-9999 seconds X2

Grinding head motor

100W brushless DC motor

Grinding disc motor

300W brushless DC motor

Sample block diameter

Φ8-40mm (special specifications and sizes can be selected)

Product size

620*480*660mm

Packaging size

700*600*700mm

Product net weight

50kg

Power supply

220V/50HZ/400W

Standard Configuration

Main unit

1 set

Aluminum polishing disc

1 piece

Aluminum buckle ring

1 sheet

Water retaining ring

1 sheet

Automatic spraying system

1 set

Sample clamping plate

1 piece

Polishing flannel

2 sheets

Metallographic sandpaper

12 sheets

Aluminum oxide polishing powder

50g

Power cord

1 meter/piece

Water inlet pipe

1 meter/piece

Water outlet pipe

1 meter/piece

Air inlet pipe

1 meter/piece

Optional:

Silent air pump, diamond grinding disc, special fixture.

Common consumables (optional)

Metallographic sandpaper

180#240#320#400#600#800#1000#1200#2000#3000#4000#5000#etc.

Diamond grinding disc

180#240#320#400#600#800#1000#1200#2000#3000#4000#5000#etc.

Diamond sandpaper

45-0.3um, etc.

Polishing cloth

Red velvet/grey velvet/black velvet/pink velvet/navy/nylon/canvas, etc.

Diamond polishing agent

W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14, etc.

Diamond suspension

W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14, etc.

Aluminum oxide polishing powder

W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14, etc.


×
